Explosion-bonded clad material is commonly used for pressure vessel construction. The clad liner (cladder) is explosively bonded to the backer material (backer). The alloy-clad material can be bonded to most metals. The most common types of backer materials are SA-516-70 (P no. 1 material) and SA-387 Gr. 11 (P no. 4 material).
During the fabrication process, the edges of the clad material are “peeled back” to remove a small portion of the cladder from the backer. This allows the fabricator to weld the backer material without welding the clad liner. The backer material is the strength of the vessel. Once the backer material is welded, then you can perform the clad restoration.
Clad restoration means that you are “restoring the clad liner” that was peeled back. This is achieved by welding. The first pass of weld is called the buffer layer. The buffer layer of weld metal essentially seals the backer from the alloy liner. The next layers of weld are the chemistry layers. The chemistry layers of weld metal should match the chemical composition of the alloy-clad material.
Clad restoration is performed on longitudinal seams, girth seams, and nozzles insertion welds. Some common types of welding processes used for clad restoration are SAW, ESW, FCAW, and GMAW.
Question: What are the three types of clad used for cladded vessel construction?
Answer: 1) Explosion Bonded Clad. 2) Rolled Bonded Clad. 3) Cladding by weld metal overlay.

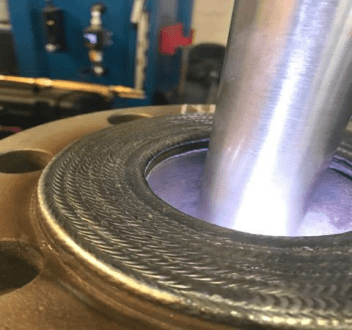

The most common type of clad used for vessel construction is explosion bonded clad. This is most commonly used for shell plate and head plate materials. Nozzles usually receive a weld metal overlay or most commonly referred to as a Corrosion Resistant Overlay (CRO).
Question: How can I be sure that the welding consumables used for fabrication meet the chemical requirements of the weld metal specification and classification?
Answer: Positive Material Identification (PMI). PMI is a way to test the chemical composition of weld metal and base metal. There are three different types of portable instrumentation that you can use to check the chemical composition of a metal. Optical Emission Spectrometry (OES), X-Ray Fluorescence (XRF), and Laser Induced Breakdown Spectroscopy (LIBS).
Before you start any production welding, you should always test your weld metal to ensure it’s what you purchased. Just because a spool of wire has a sticker on it that says ER316L, doesn’t guarantee you that your product is ER316L. Everyone makes mistakes, so make sure you are using the correct welding consumable.
