Vessel Name: Reflux Accumulator
Size: 12’OD x 60’-4” T/T
Thickness: 3/4″
Weight: 87,445
Material: SA516-70 HIC
Industry: Refining
Vessel Name: Effluent Splitter
Size: 12’OD x 40’-4”
Thickness: 3/4”
Weight: 61,734
Material: SA516-70 HIC
Industry: Refining

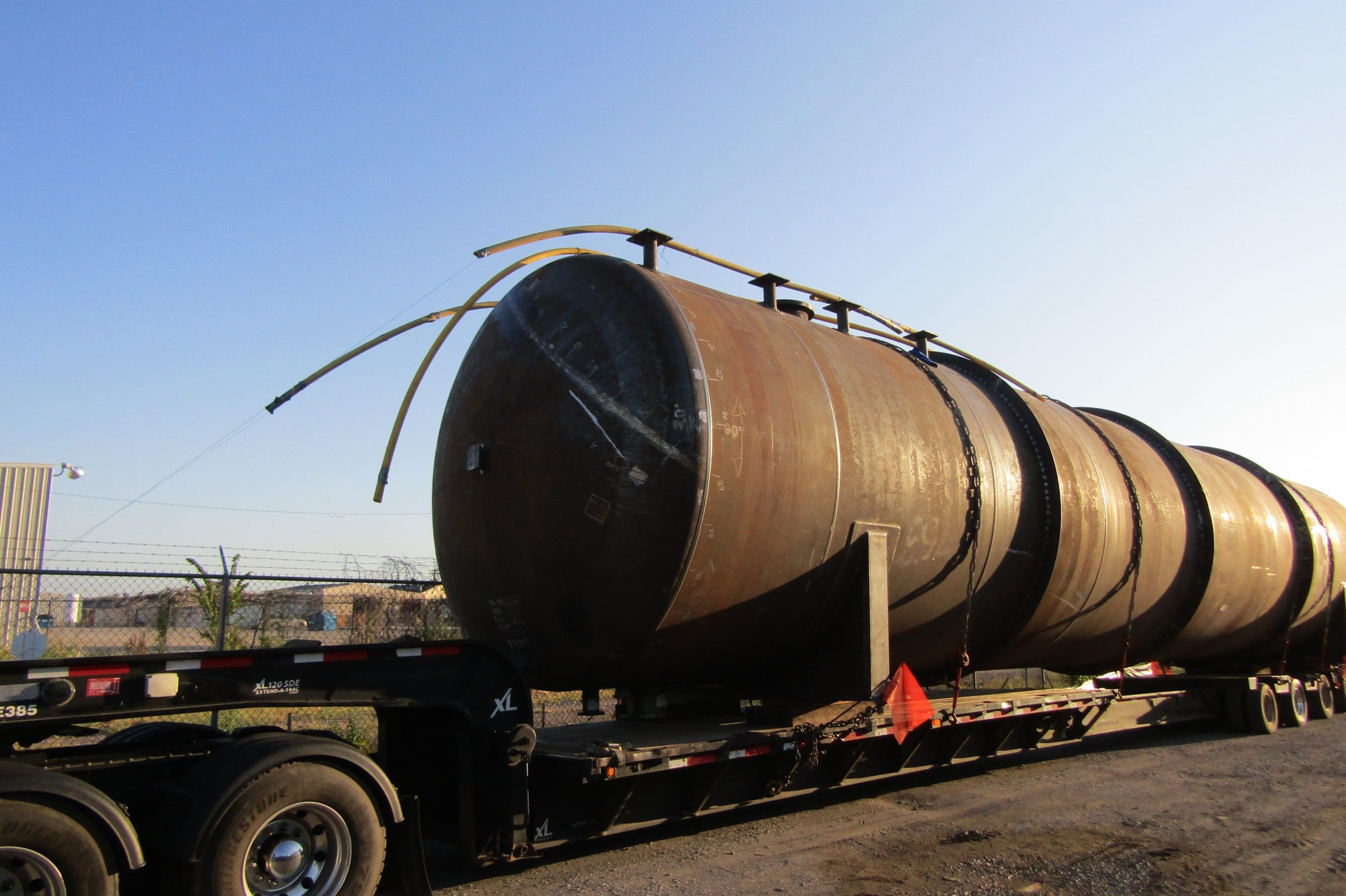

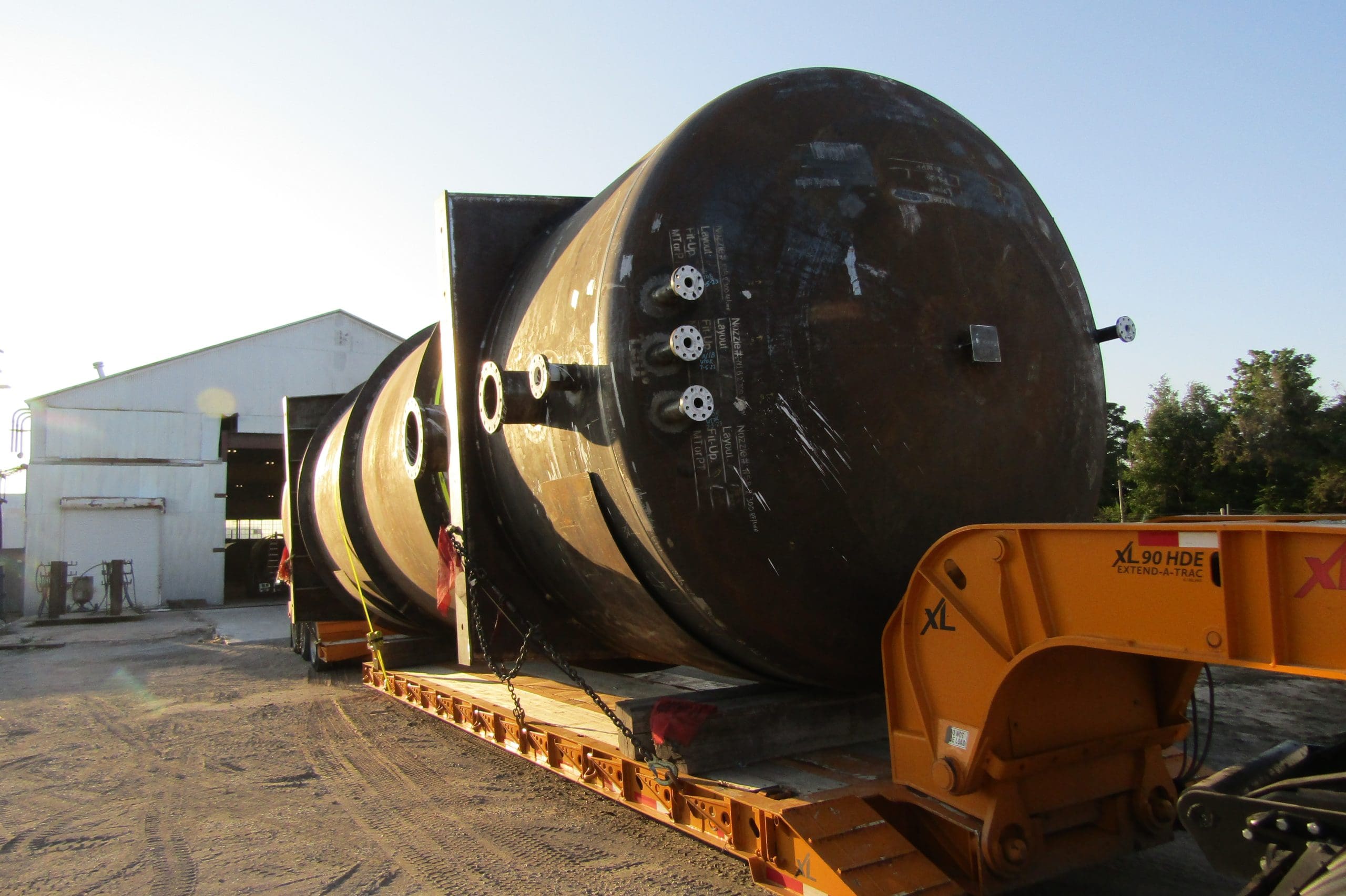

Fabricated using SAW (tandem arc), GTAW, and FCAW welding processes. We also used Semi-automated circle SAW machine on the larger nozzles. CRO (Corrosion Resistant Overlay) was performed on the removable boot. CRO was applied to the nozzle bores, faces, shell plate and head using our automated hot wire GTAW cladding system. We designed shipping saddles to give clearance for equipment to move under pipe racks. Platform supports were added to match the existing platform in the field. We utilized a 6-coat paint system. Inspection testing included MT, PT, BHN, RT, UT PMI & Ferrite testing. The equipment was also PWHT.
