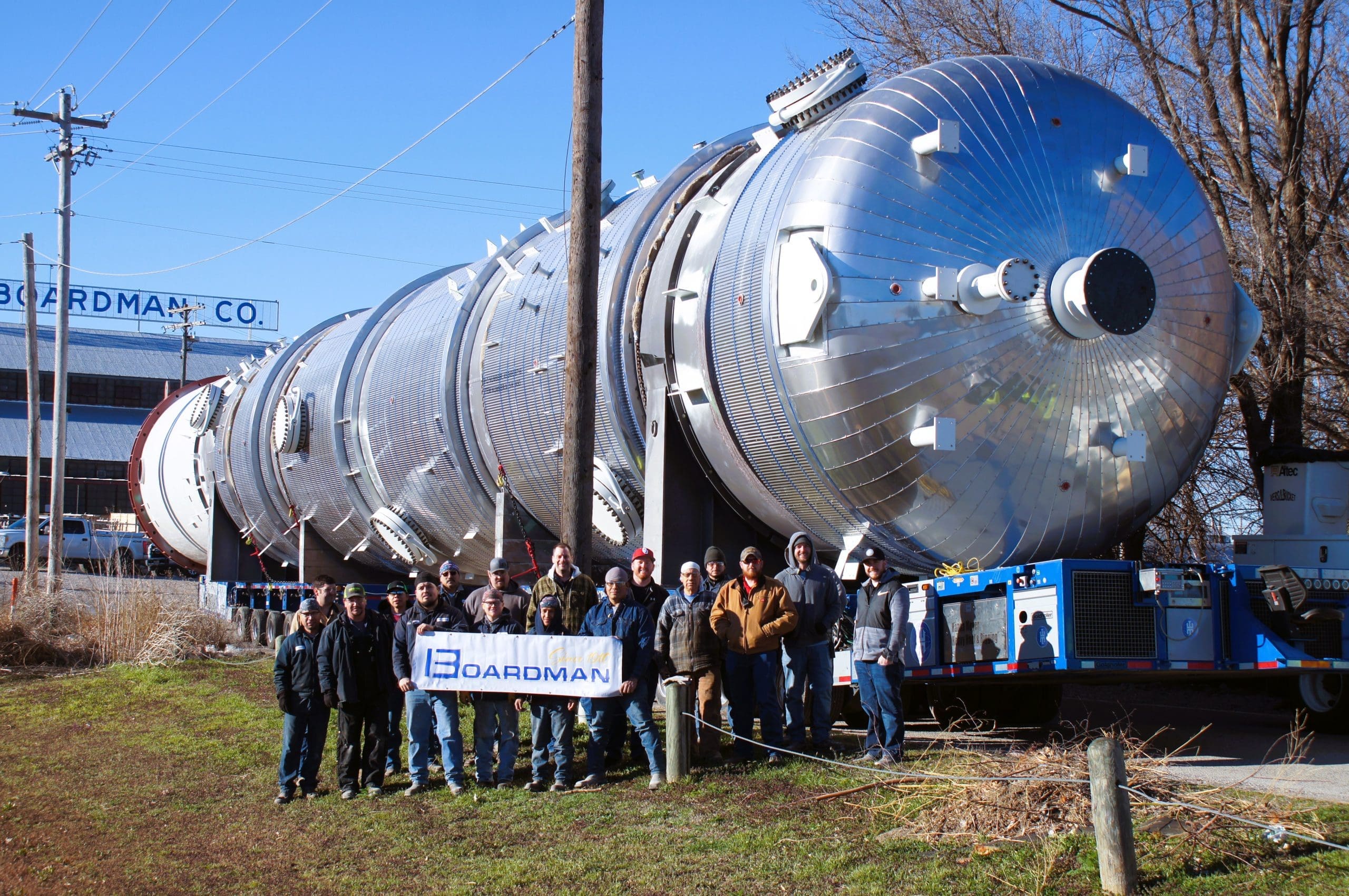

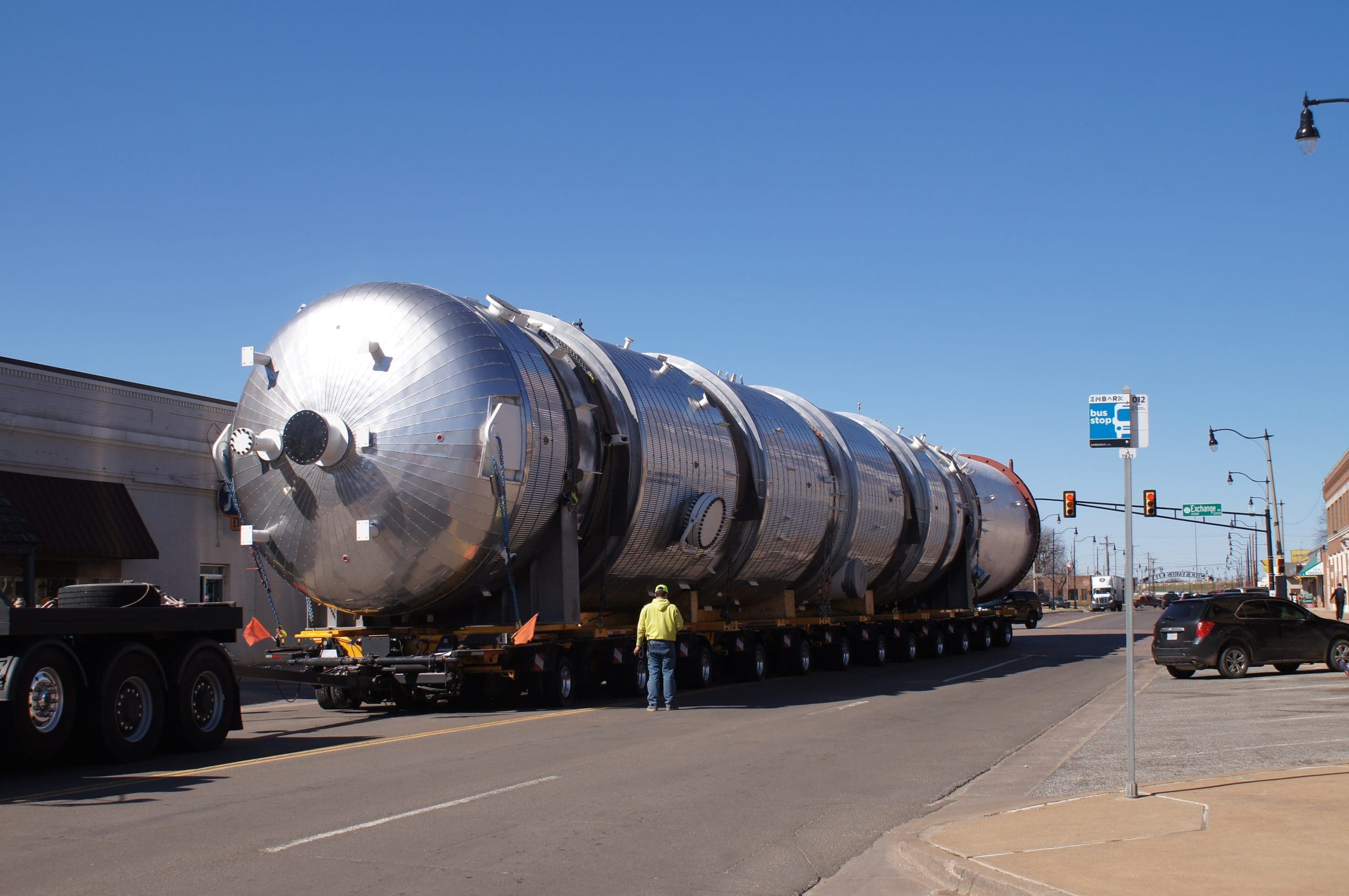

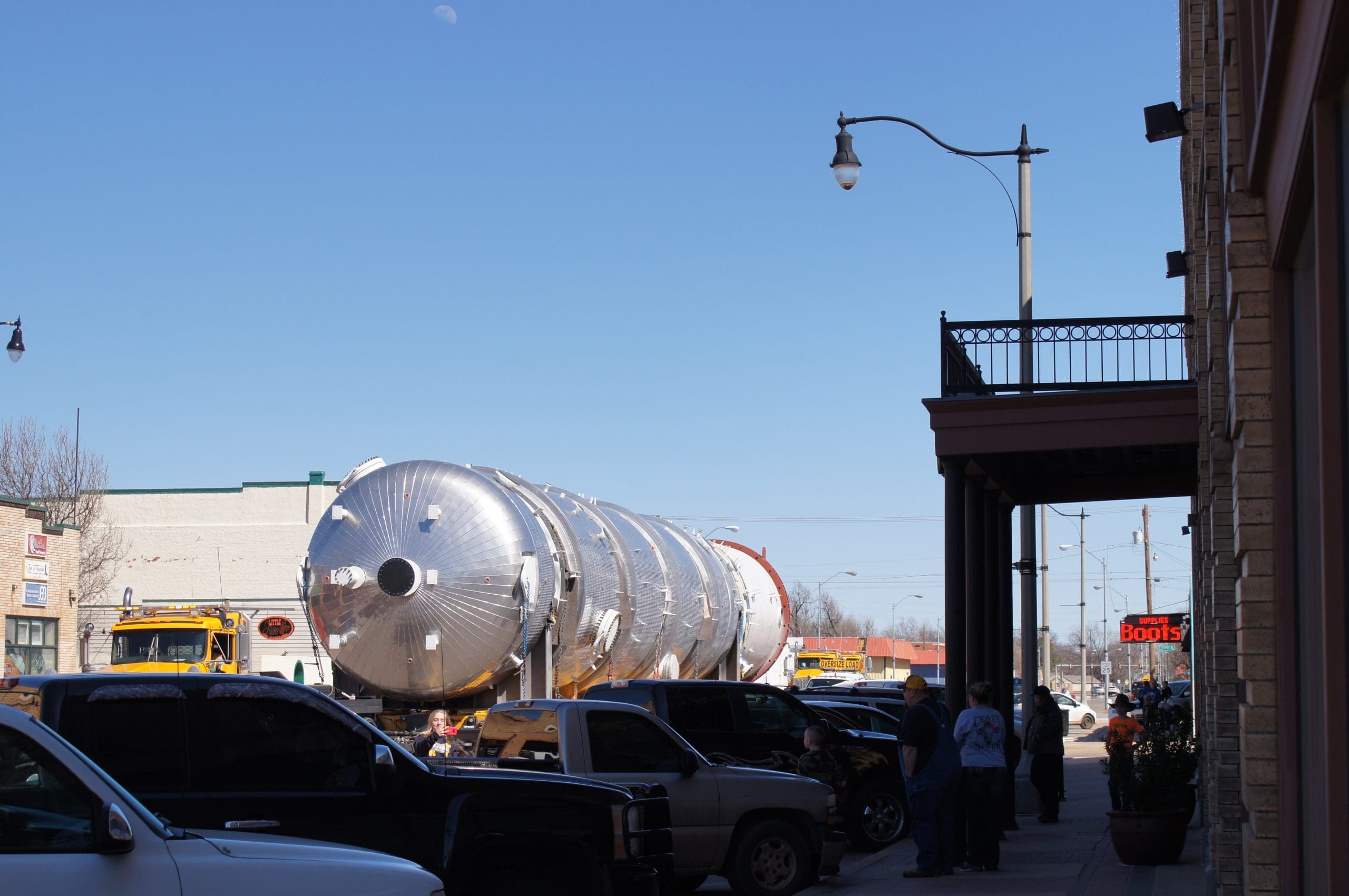

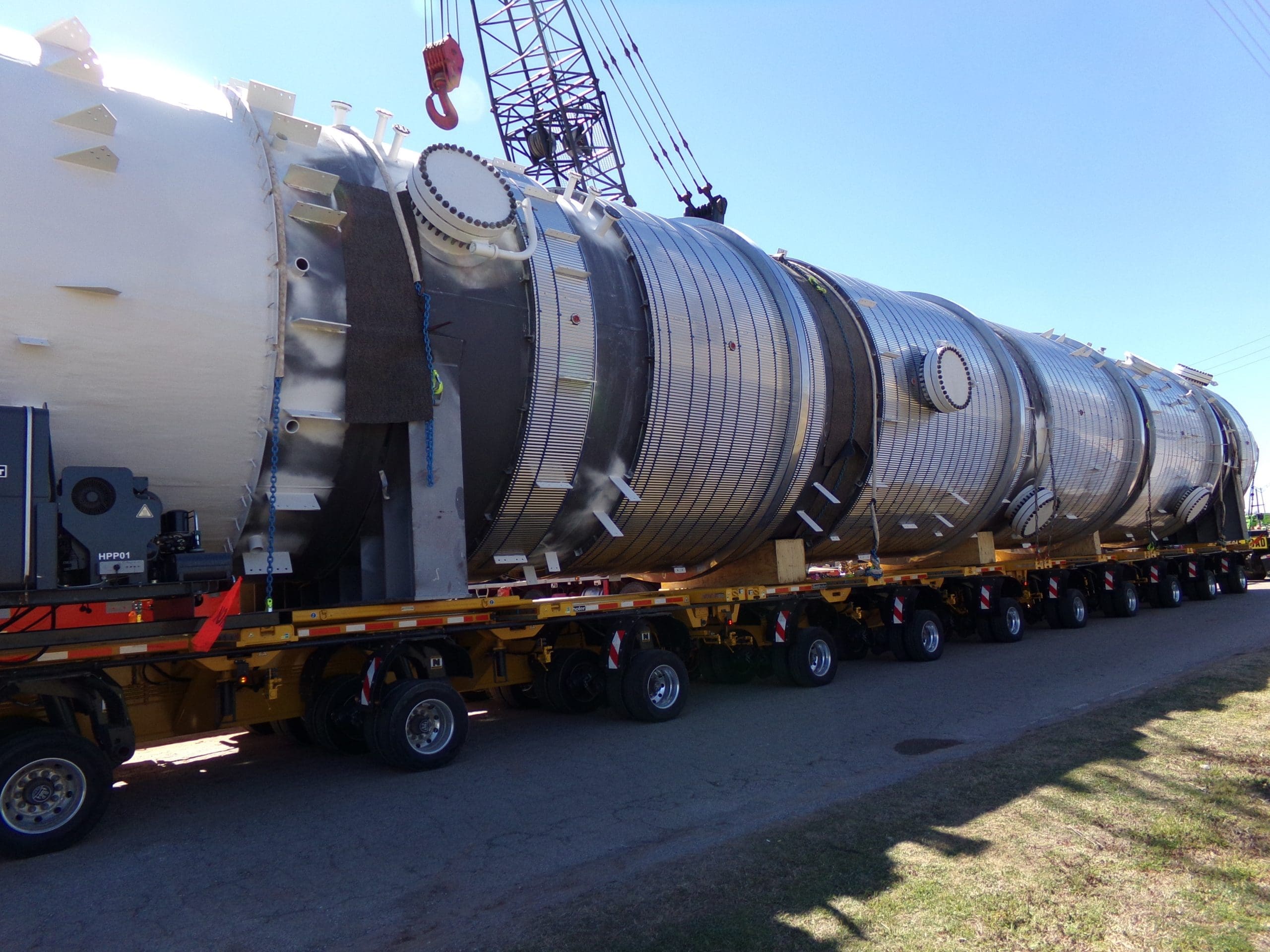

Vessel Name: Diesel Recovery Tower
Size: 186“ID x 87‘ T/T
Thickness: 1”
Weight: 344,160lbs
Material: SA516-70N s/304L Clad
Industry: Refining
Fabricated using SAW (tandem arc), GTAW, FCAW welding processes. Semi-automated circle SAW machine was used on the larger nozzles. CRO (Corrosion Resistant Overlay) was performed on all nozzle bores and faces. 30mm strip electrode was used for all LS and GS lane closures. All edges of cladding we mechanically stripped back prior to welding the backer material.
This equipment included a feed pipe, vapor horn, vacuum stiffener rings, multiple packed beds, 2 pass trays and insulation.
