Vessel Name: Inlet Feed Gas Knockout Drum
Size: 79”ID x 15’-9” T/T
Thickness: 3-1/8”
Weight: 74,133lbs
Material: SA516-70N
Industry: LNG
Vessel Name: MR Suction Drum
Size: 192”ID x 22’ T/T
Thickness: 2-1/2”
Weight: 242,676lbs
Material: SA516-70N
Industry: LNG
Vessel Name: MR Interstage Drum
Size: 144”ID x 24’ T/T
Thickness: 1-7/8”
Weight: 136,127lbs
Material: SA516-70N
Industry: LNG

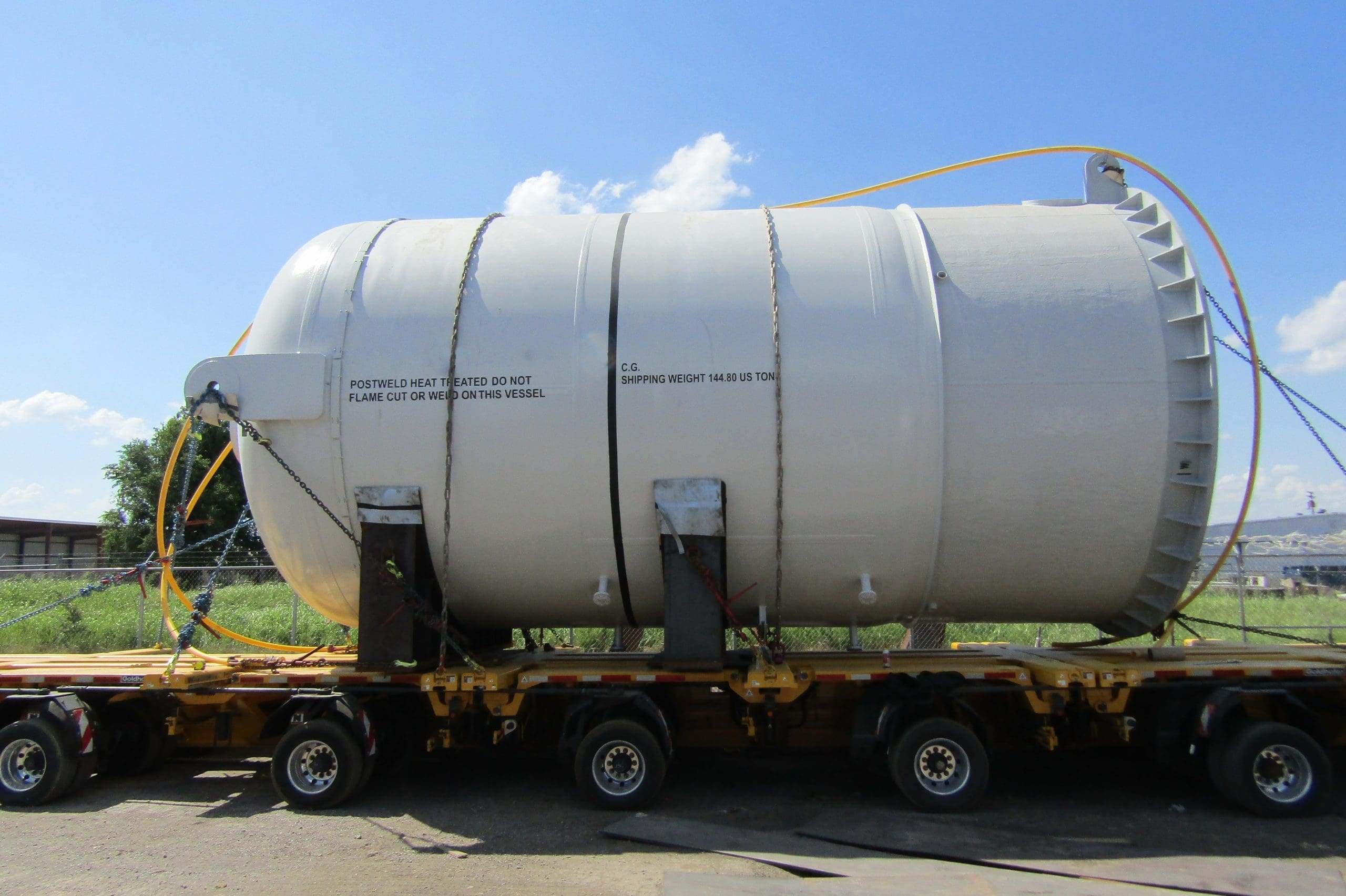

Vessel Name: MR Accumulator
Size: 174”ID x 18’ T/T
Thickness: 4-1/2”
Weight: 289,604
Material: SA516-70N
Industry: LNG
Vessel Name: LNG End Flash Drum
Size: 138”ID x 25’-1” T/T
Thickness: 1-1/8”
Weight: 84,065lbs
Material: SA240-316L
Industry: LNG
Vessel Name: HP Fuel Gas Mixing Drum
Size: 72”ID x 23’-11” T/T
Thickness: 1-3/4”
Weight: 65,058lbs
Material: SA516-70N
Industry: LNG
Vessel Name: BOG Compressor Suction Knockout Drum
Size: 144”ID x 14’-5” T/T
Thickness: 5/8”
Weight: 39,506lbs
Material: SA240-316
Industry: LNG

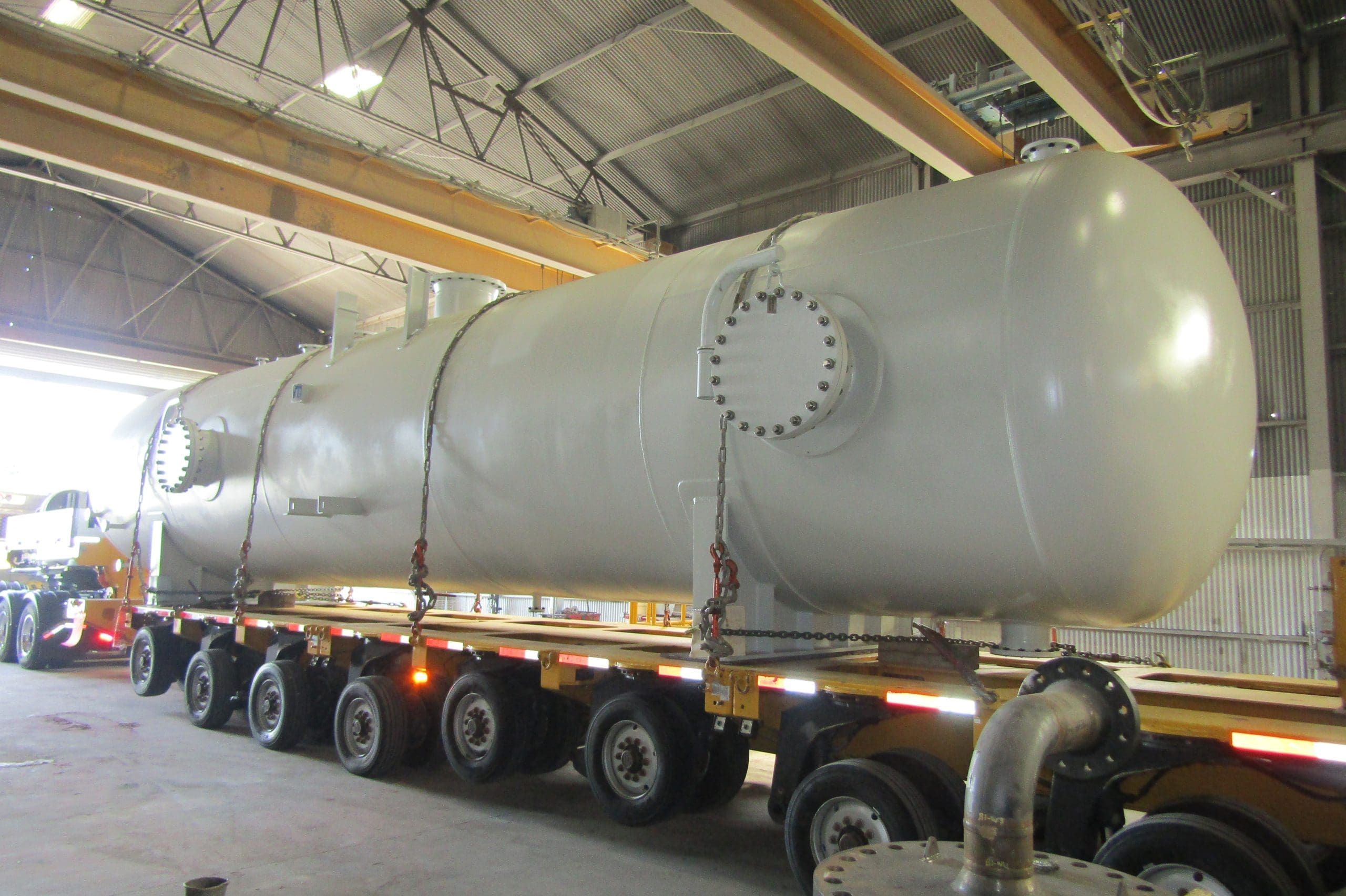

Vessel Name: Hot Oil Expansion Drum
Size: 142”ID x 47’-10” T/T
Thickness: 1-1/8”
Weight: 108,828lbs
Material: SA516-70N
Industry: LNG

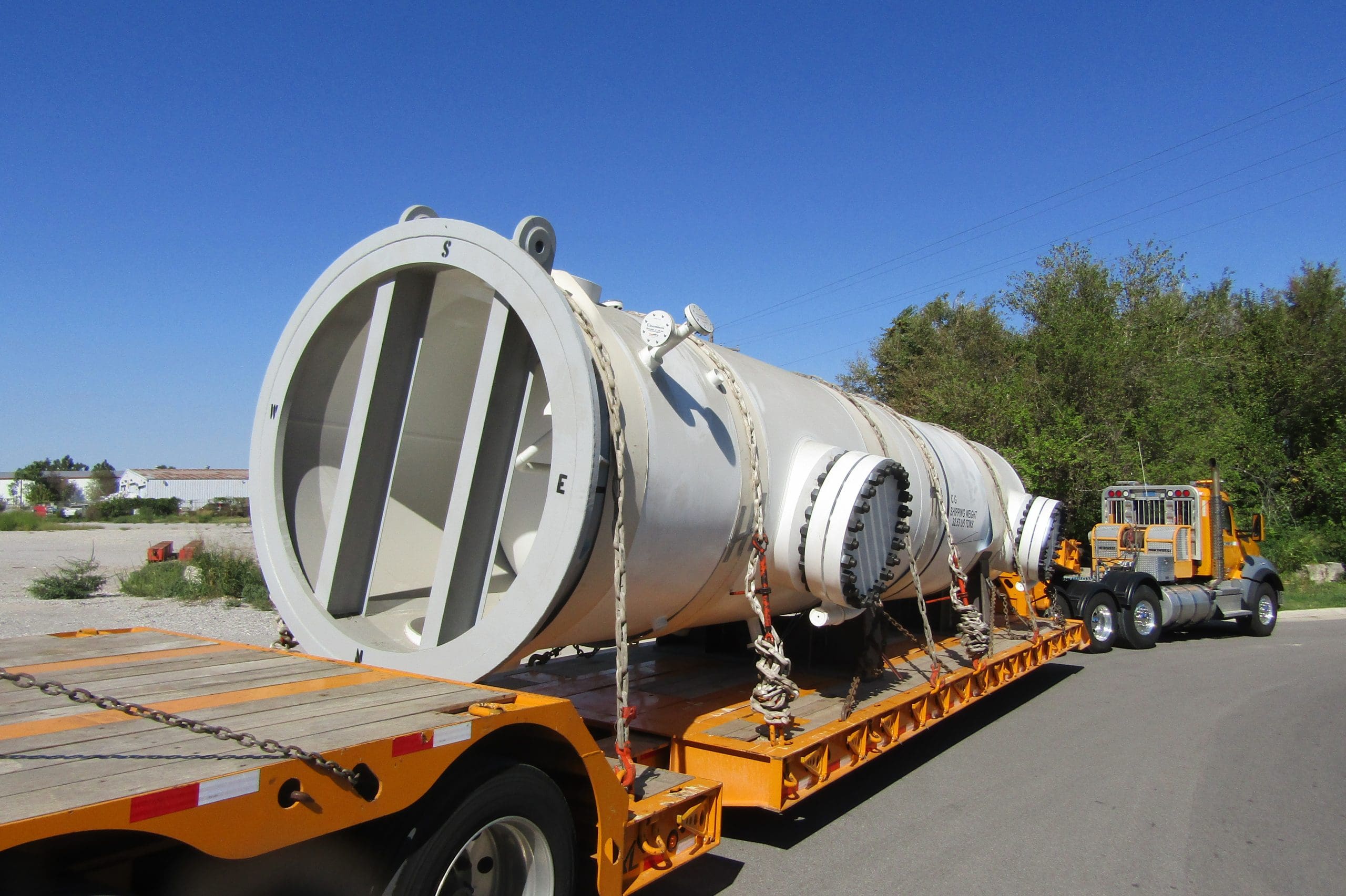

Vessel Name: Rich Solution Flash Drum
Size: 107”ID x 41’-4” T/T
Thickness: 3/4″
Weight: 54,529lbs
Material: SA240-316L
Industry: LNG

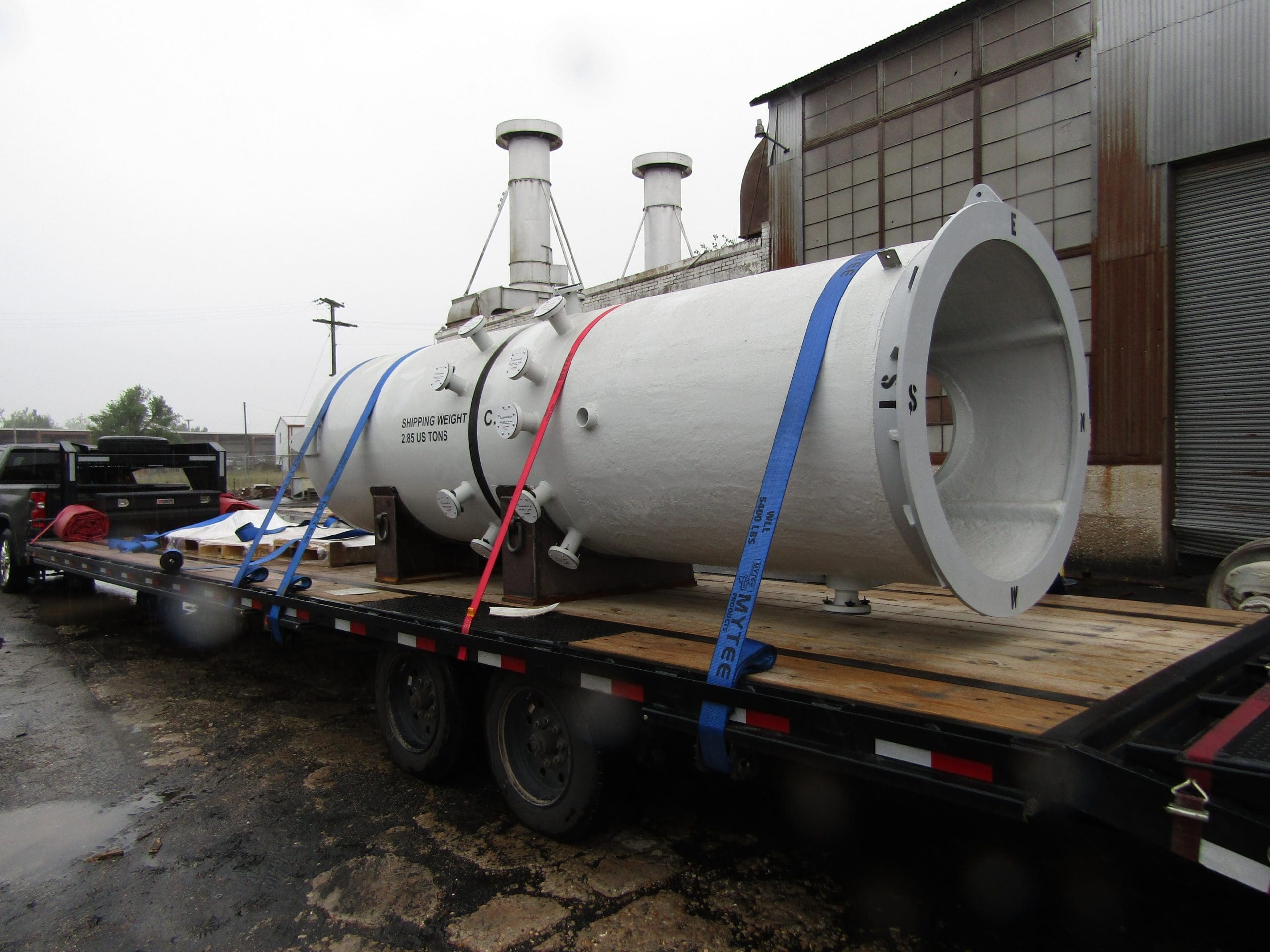

Vessel Name: Amine Reflux Drum
Size: 48”ID x 103” T/T
Thickness: 3/8”
Weight: 5,690lbs
Material: SA240-316L
Industry: LNG

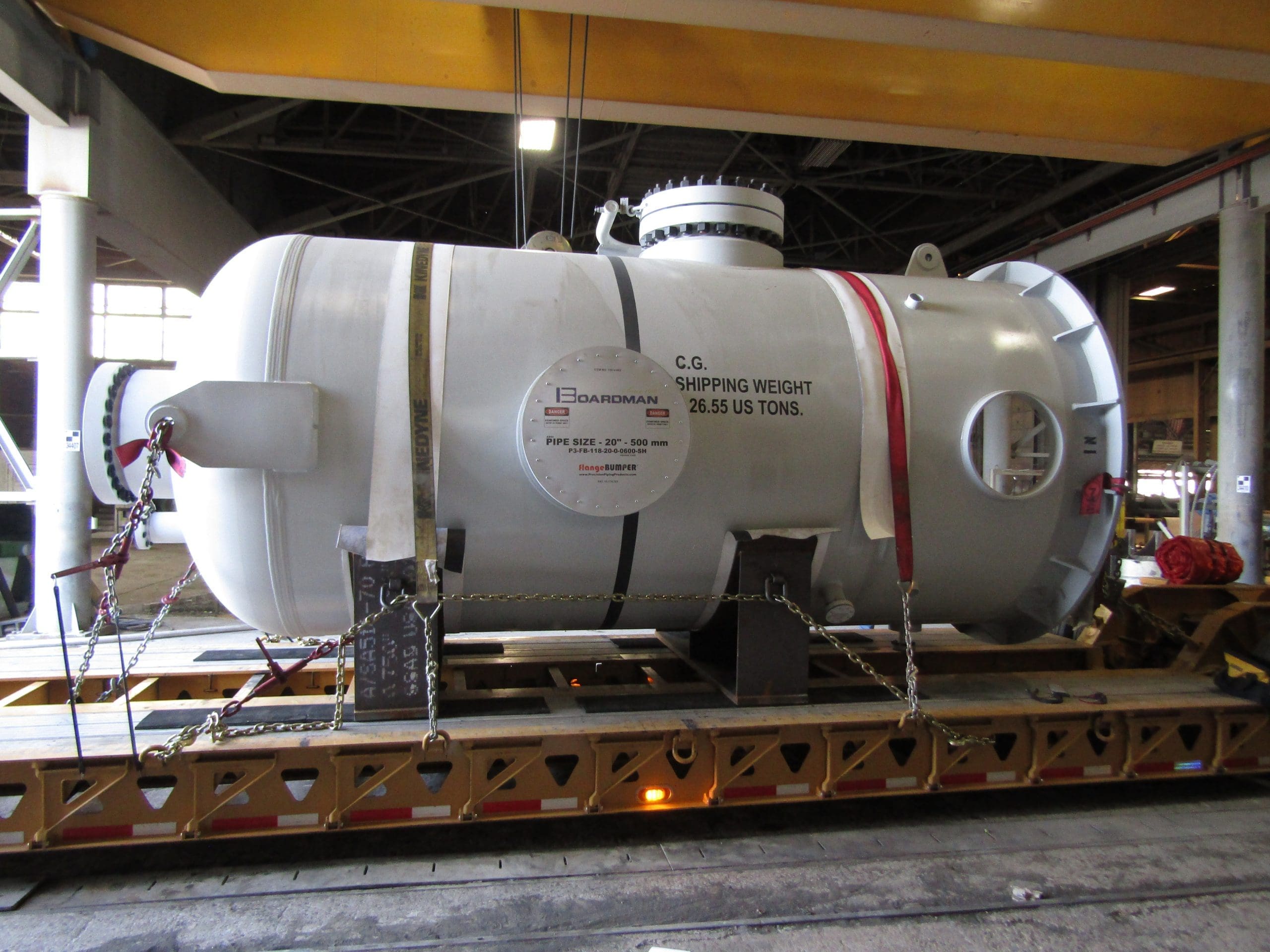

Vessel Name: Product Gas Knockout Drum
Size: 87”ID x 10’-6” T/T
Thickness: 2-3/4”
Weight: 53,107lbs
Material: SA516-70N
Industry: LNG

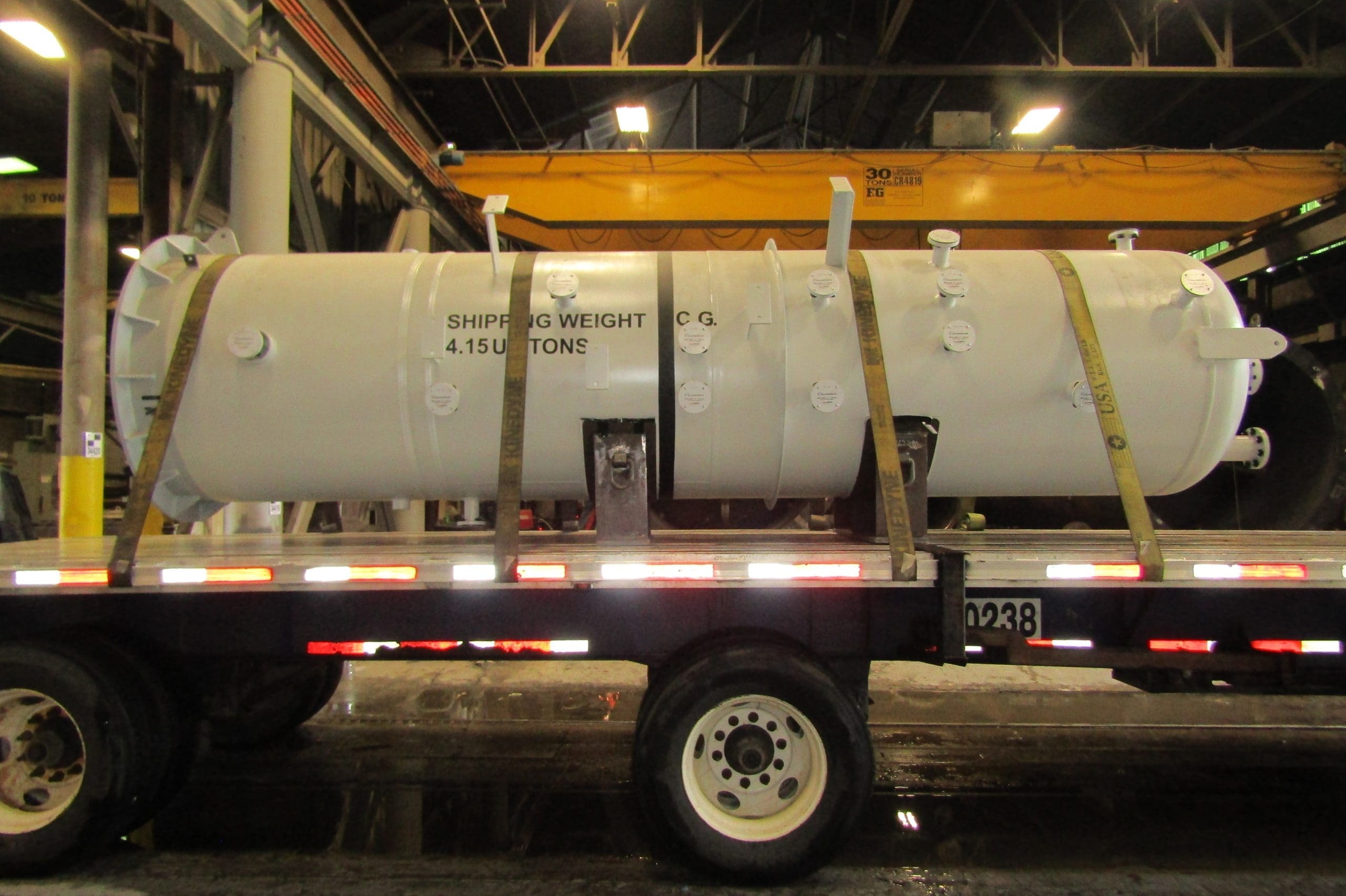

Vessel Name: Amine Recovery Drum
Size: 52”ID x 154” T/T
Thickness: 1/2″
Weight: 8,293
Material: SA516-70
Industry: LNG
Vessel Name: Regeneration Gas Knockout Drum
Size: 28”ID x 115” T/T
Thickness: 1-1/4”
Weight: 10,836lbs
Material: SA516-70
Industry: LNG

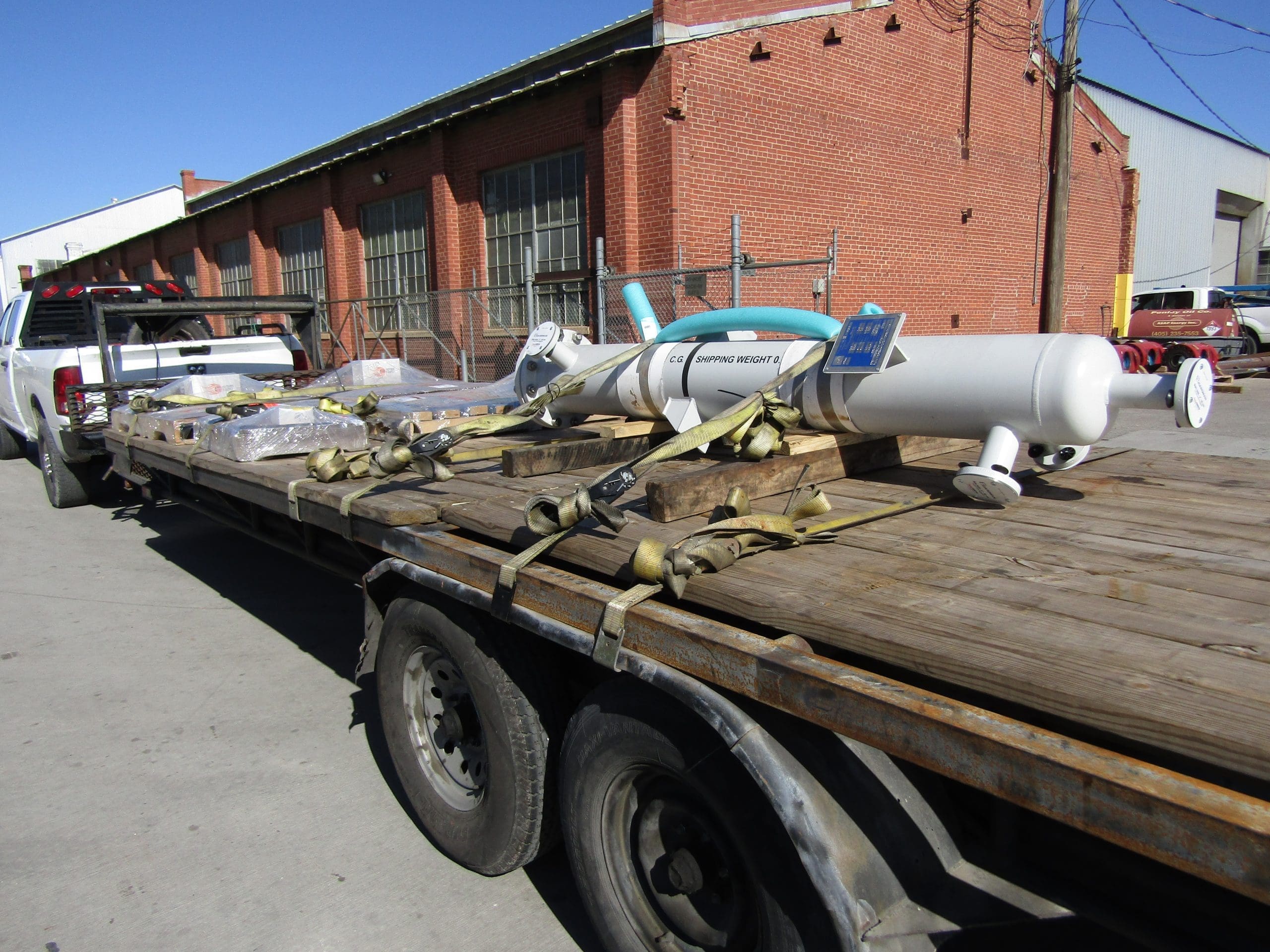

Vessel Name: Water Break Tank
Size: 10”ID x 79” T/T
Thickness: Schedule 40 Pipe
Weight: 494lbs
Material: SA240-316L
Industry: LNG

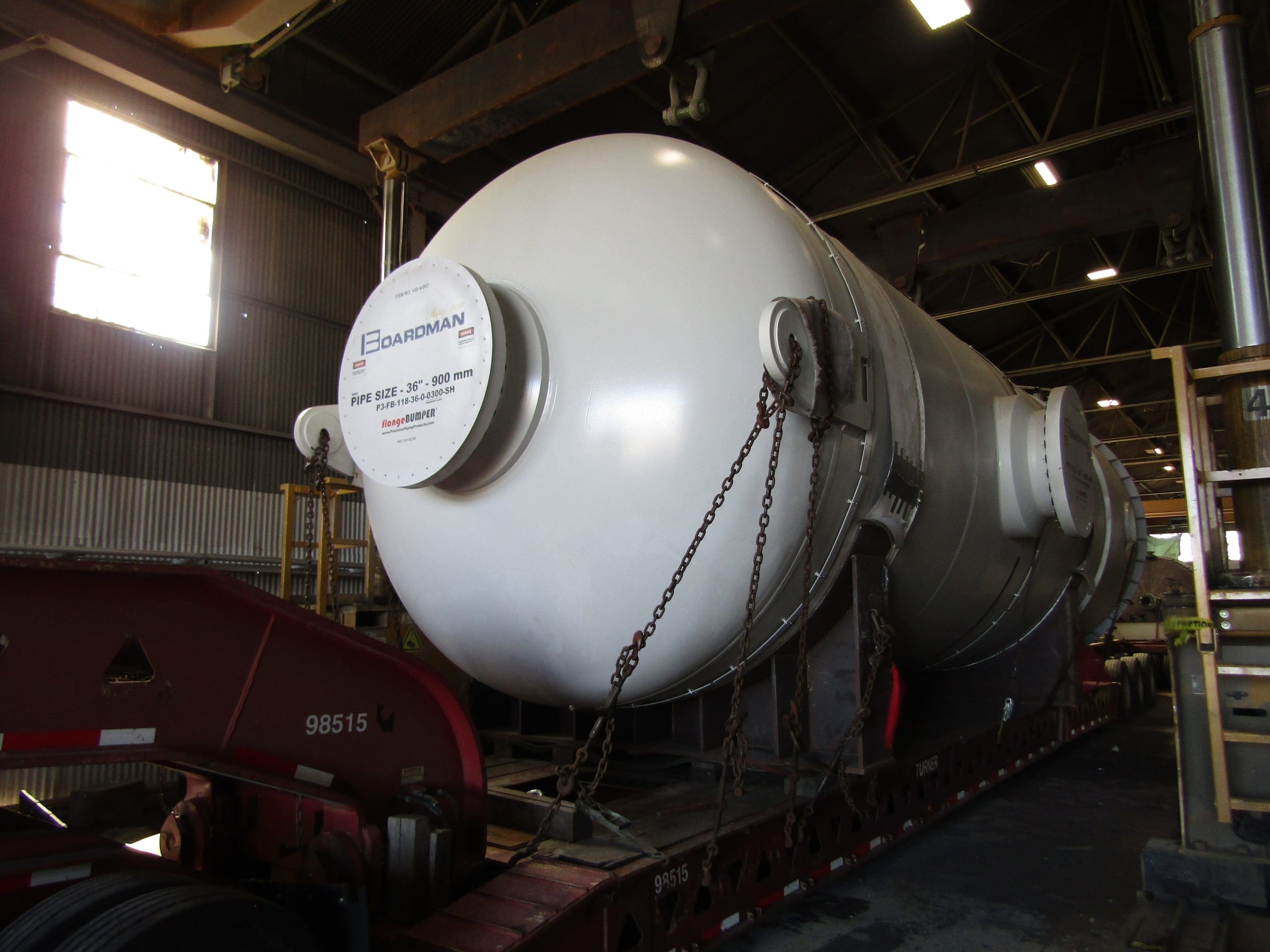

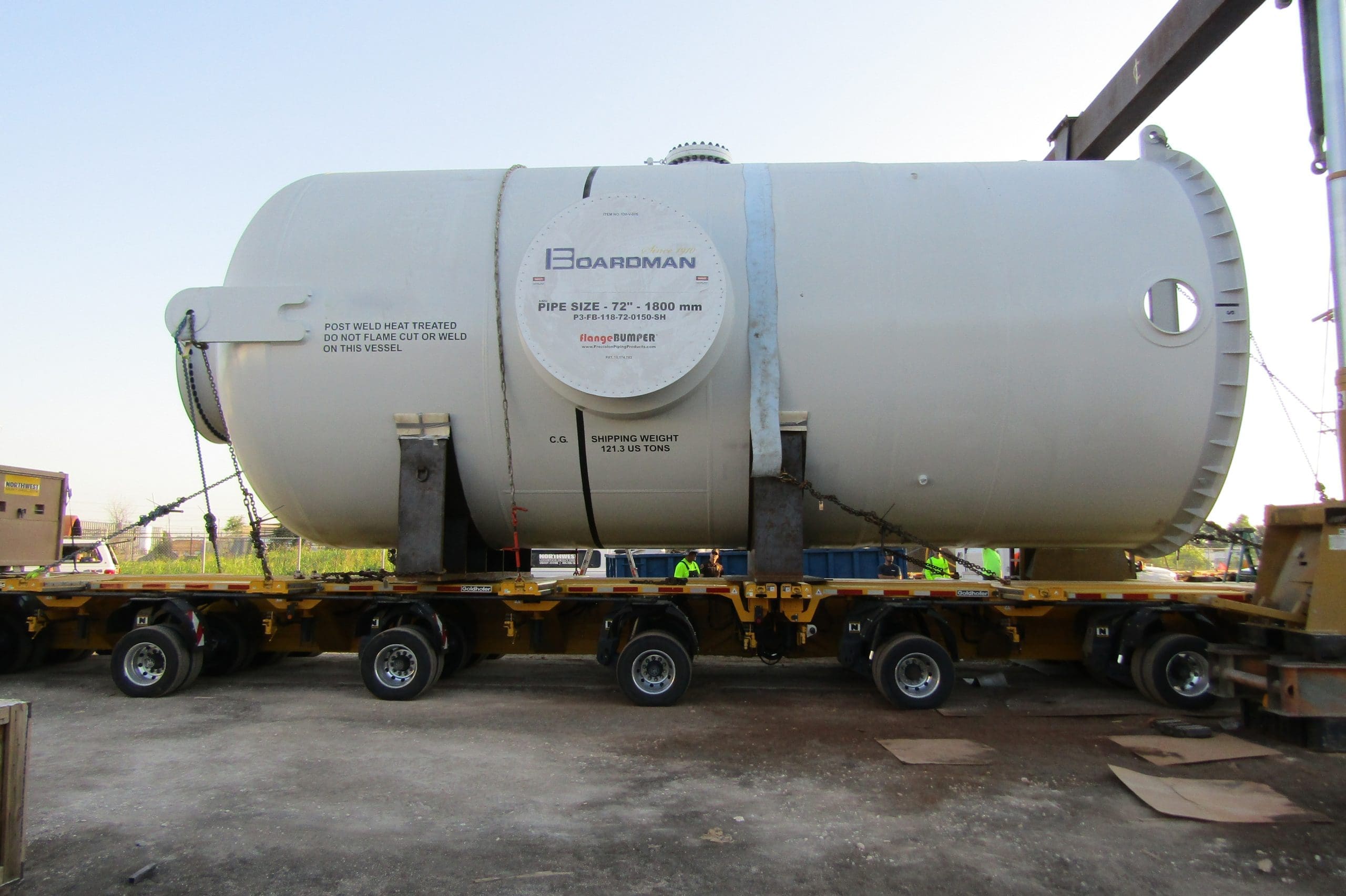

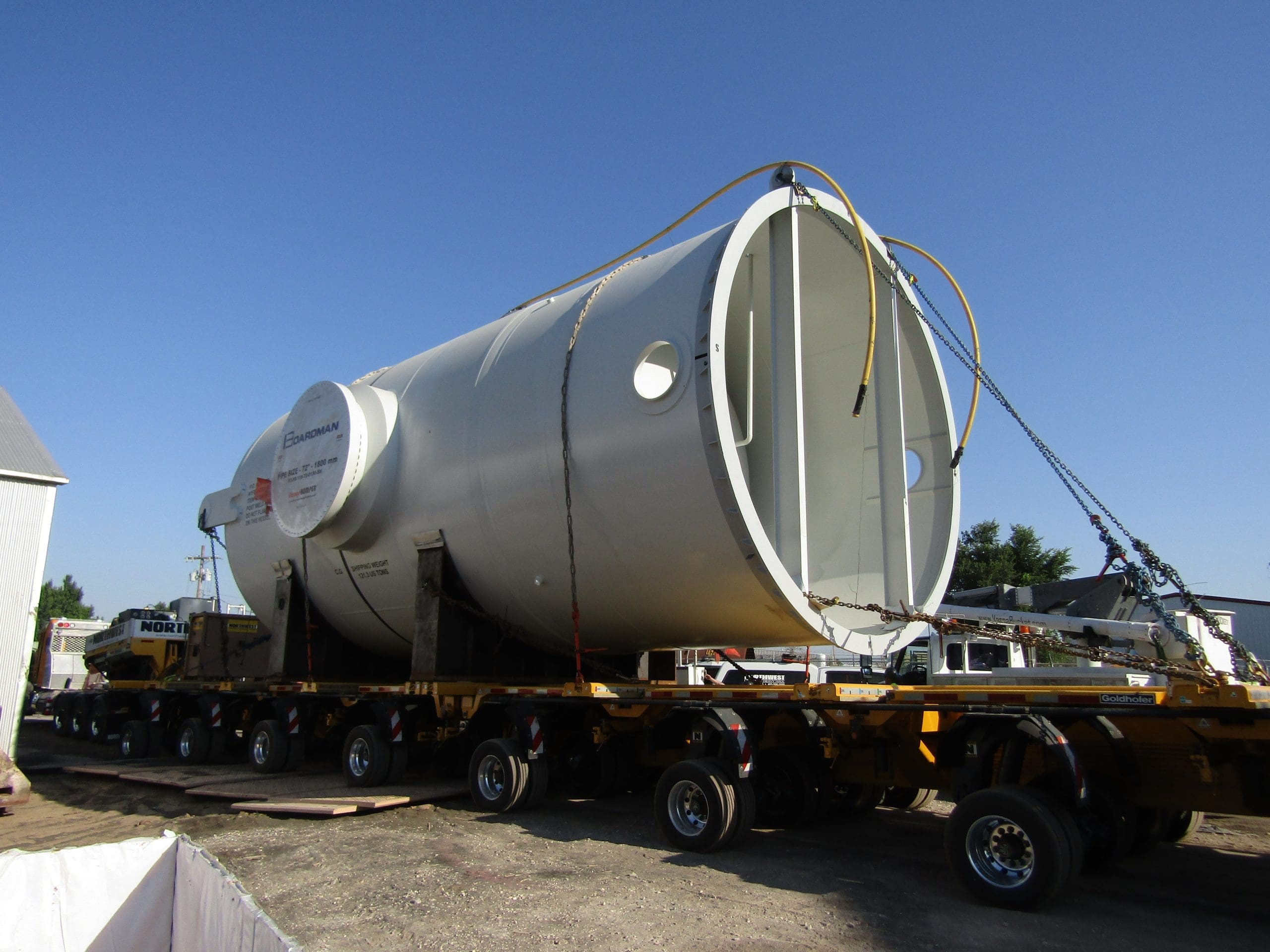

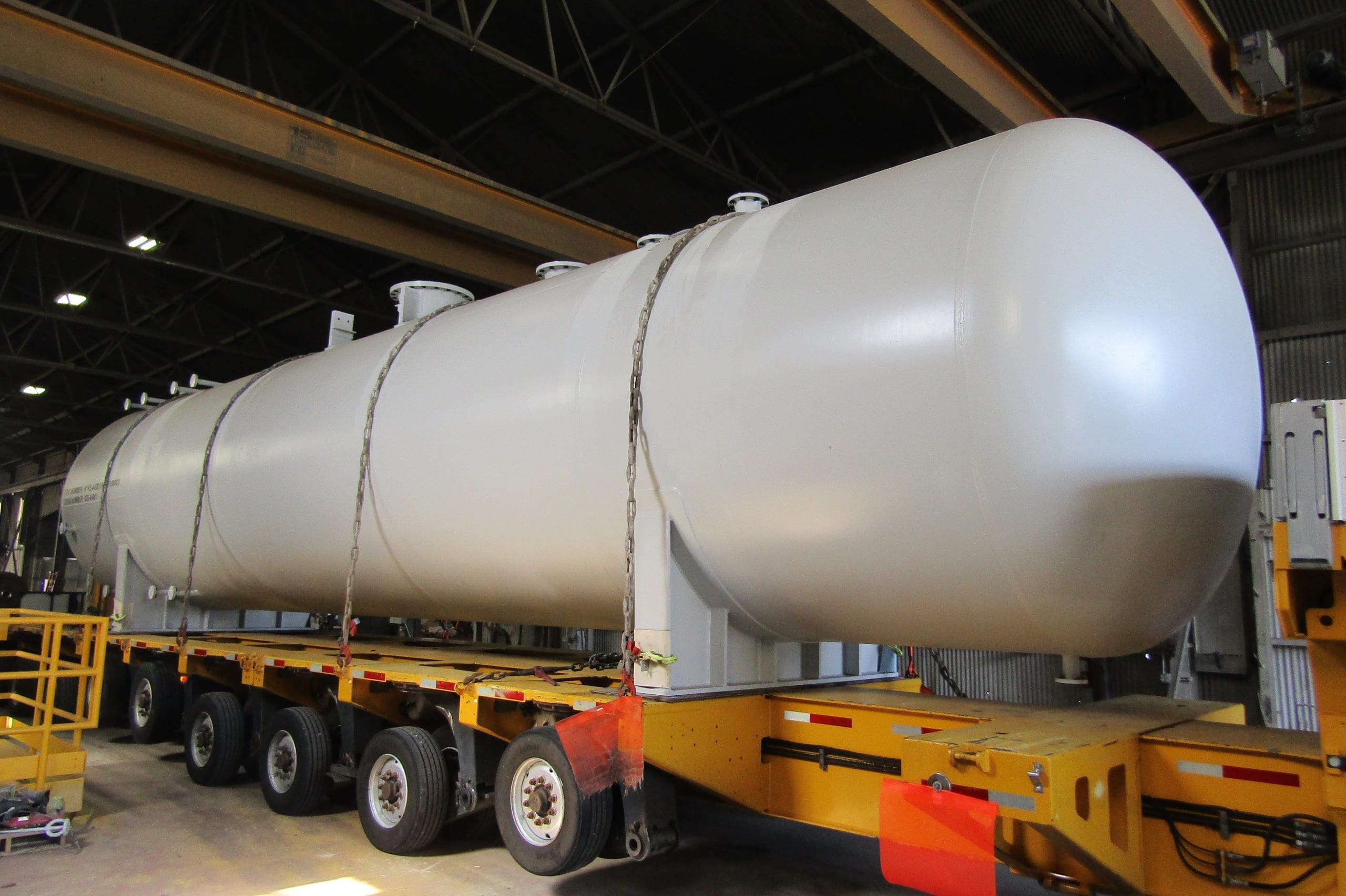

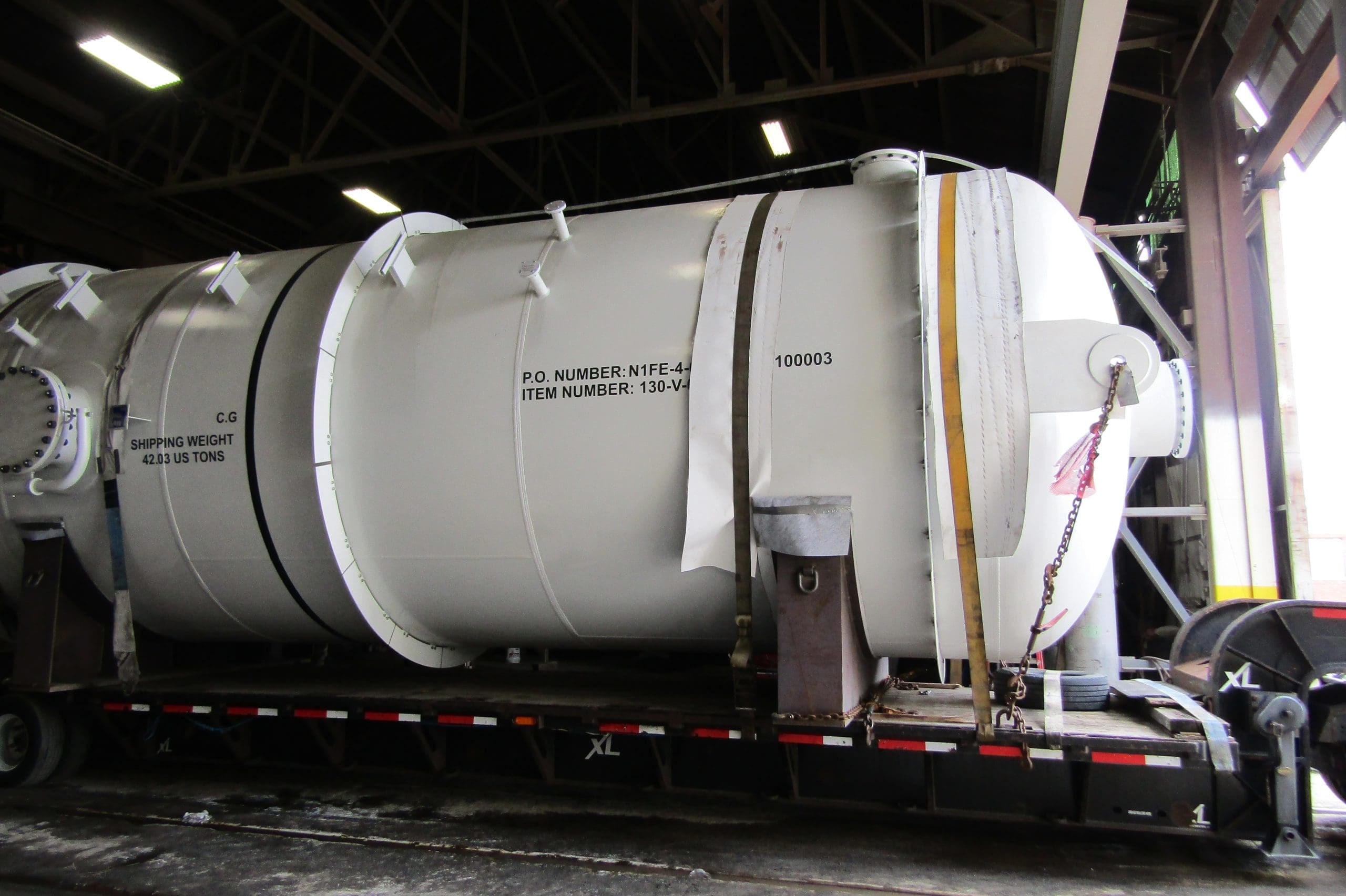

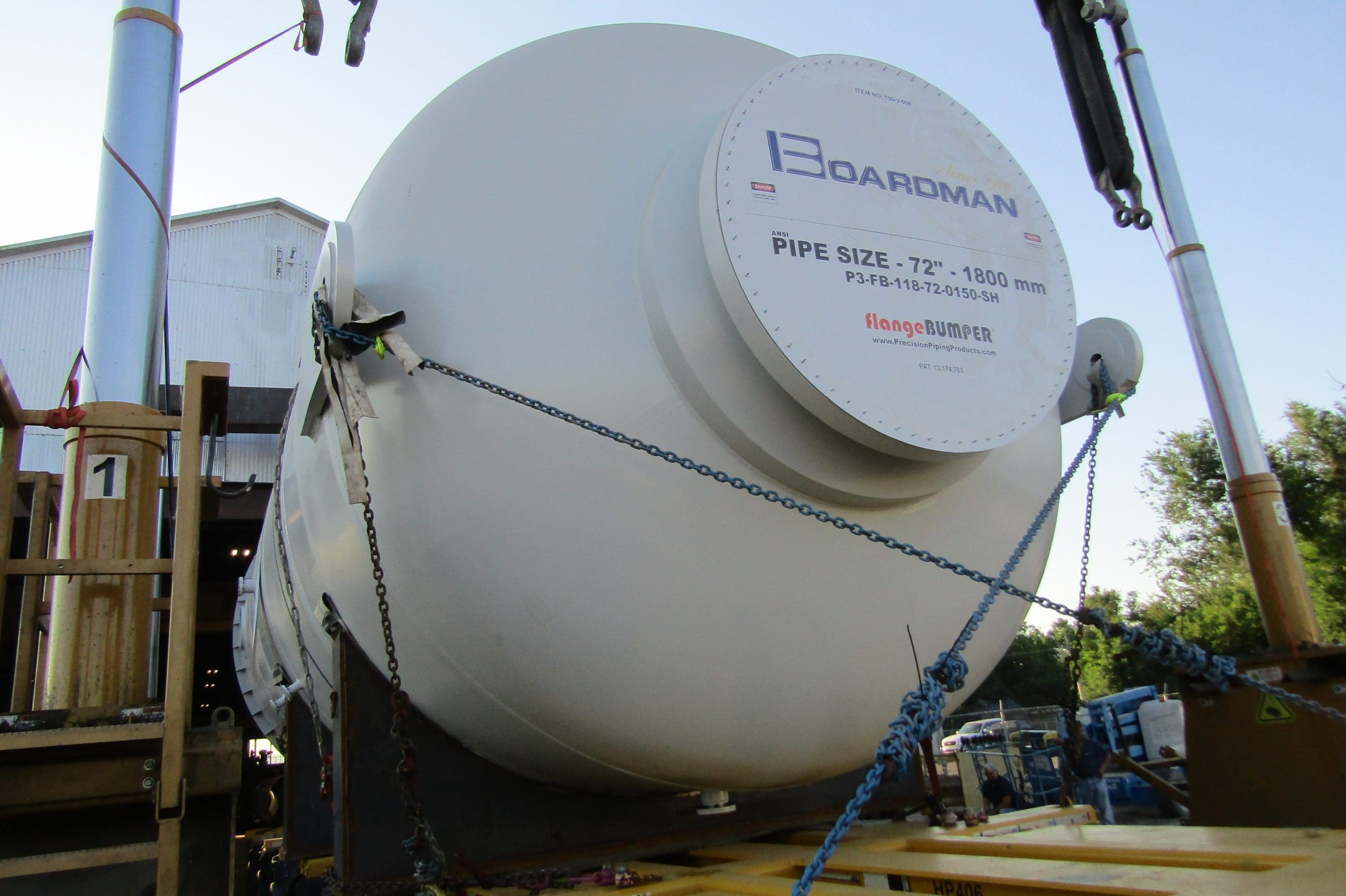

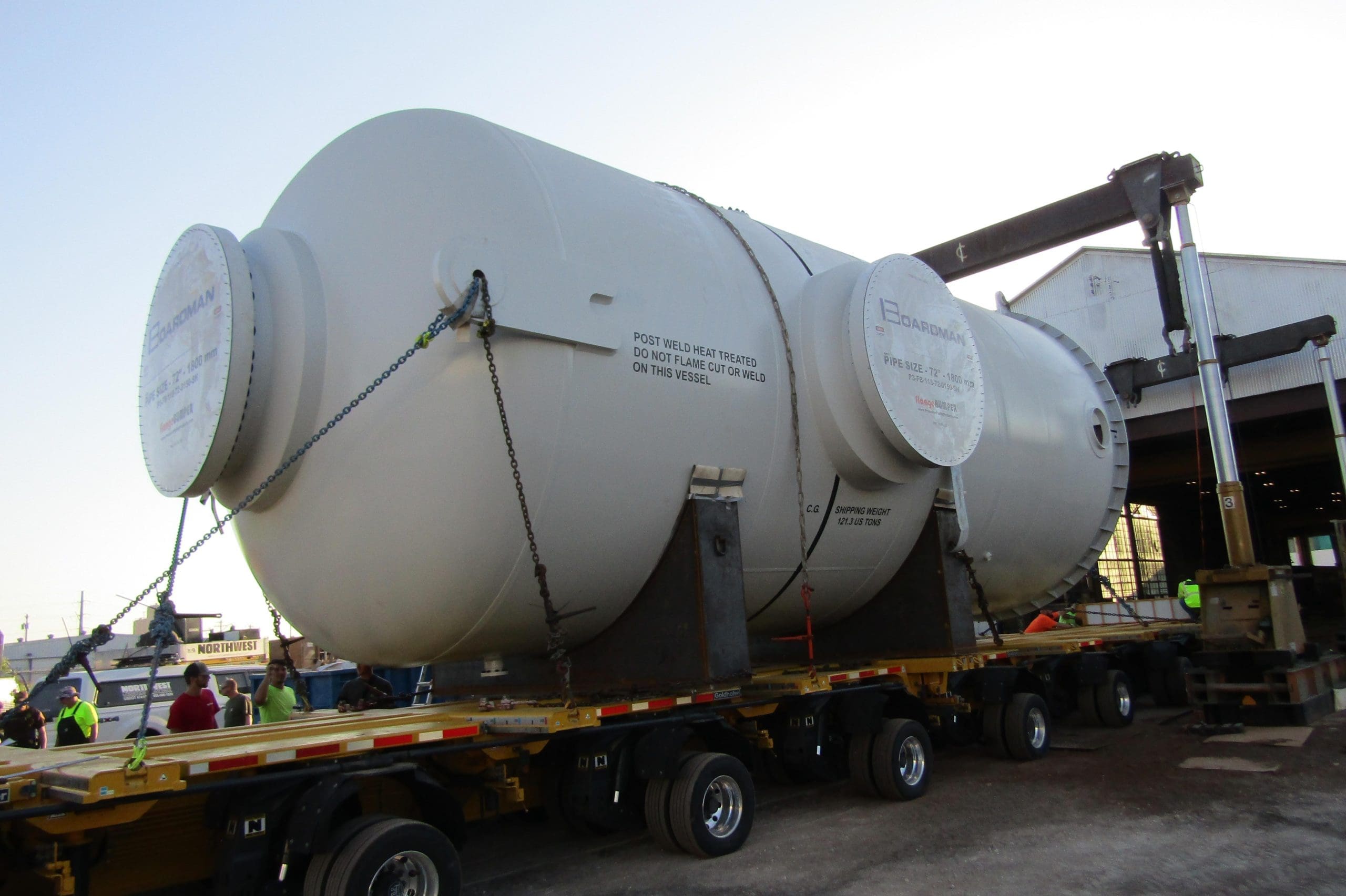

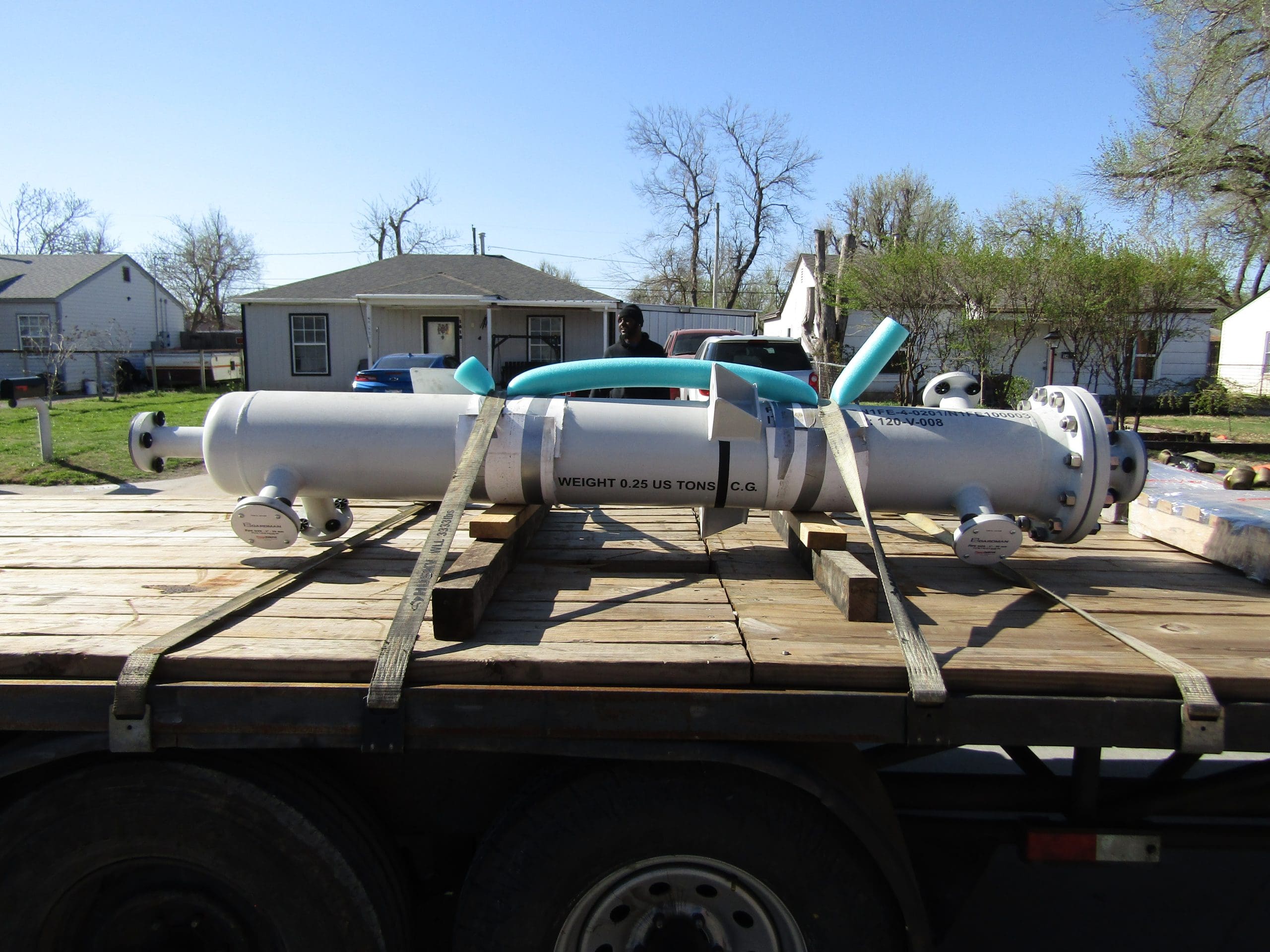

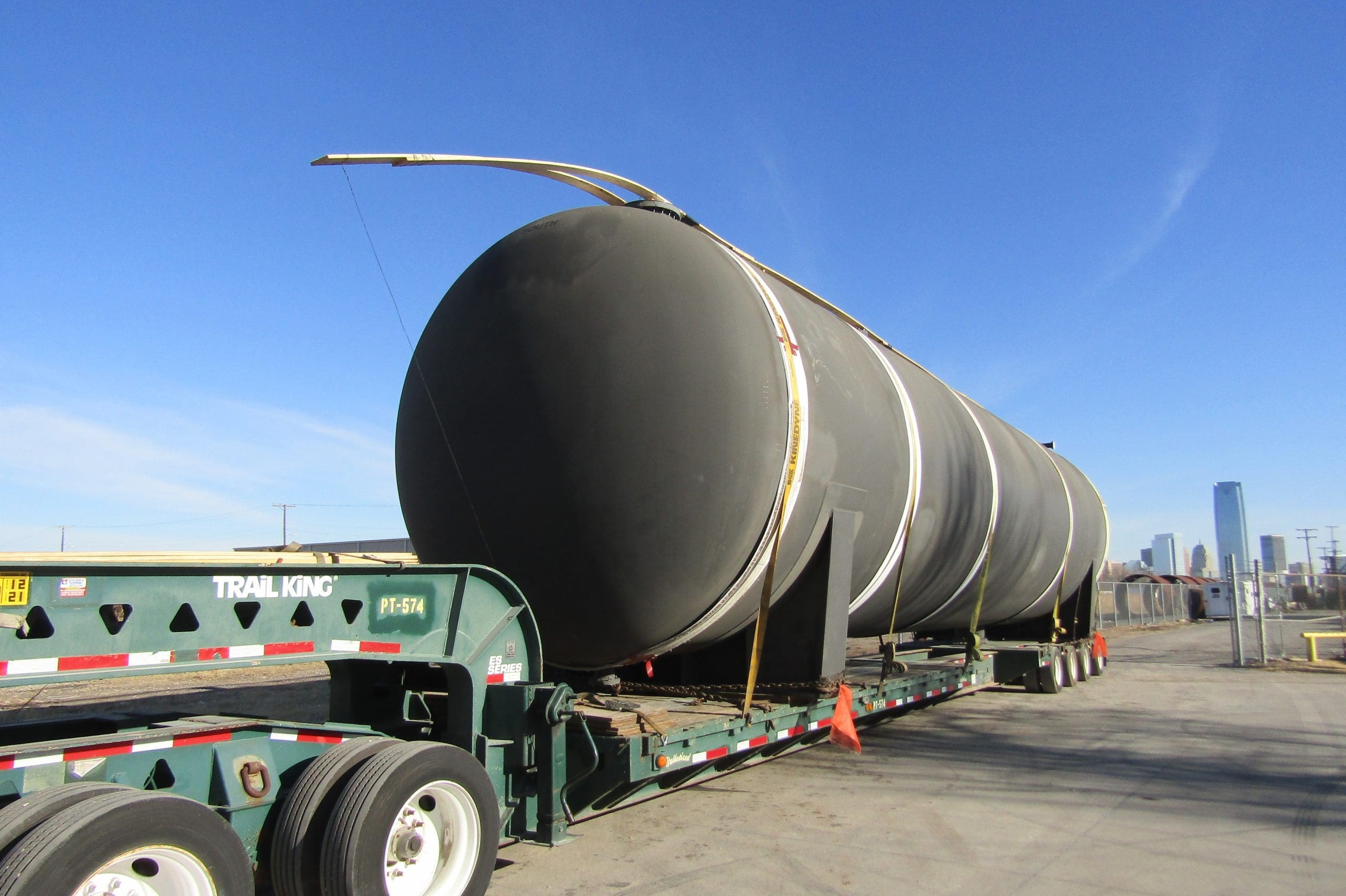

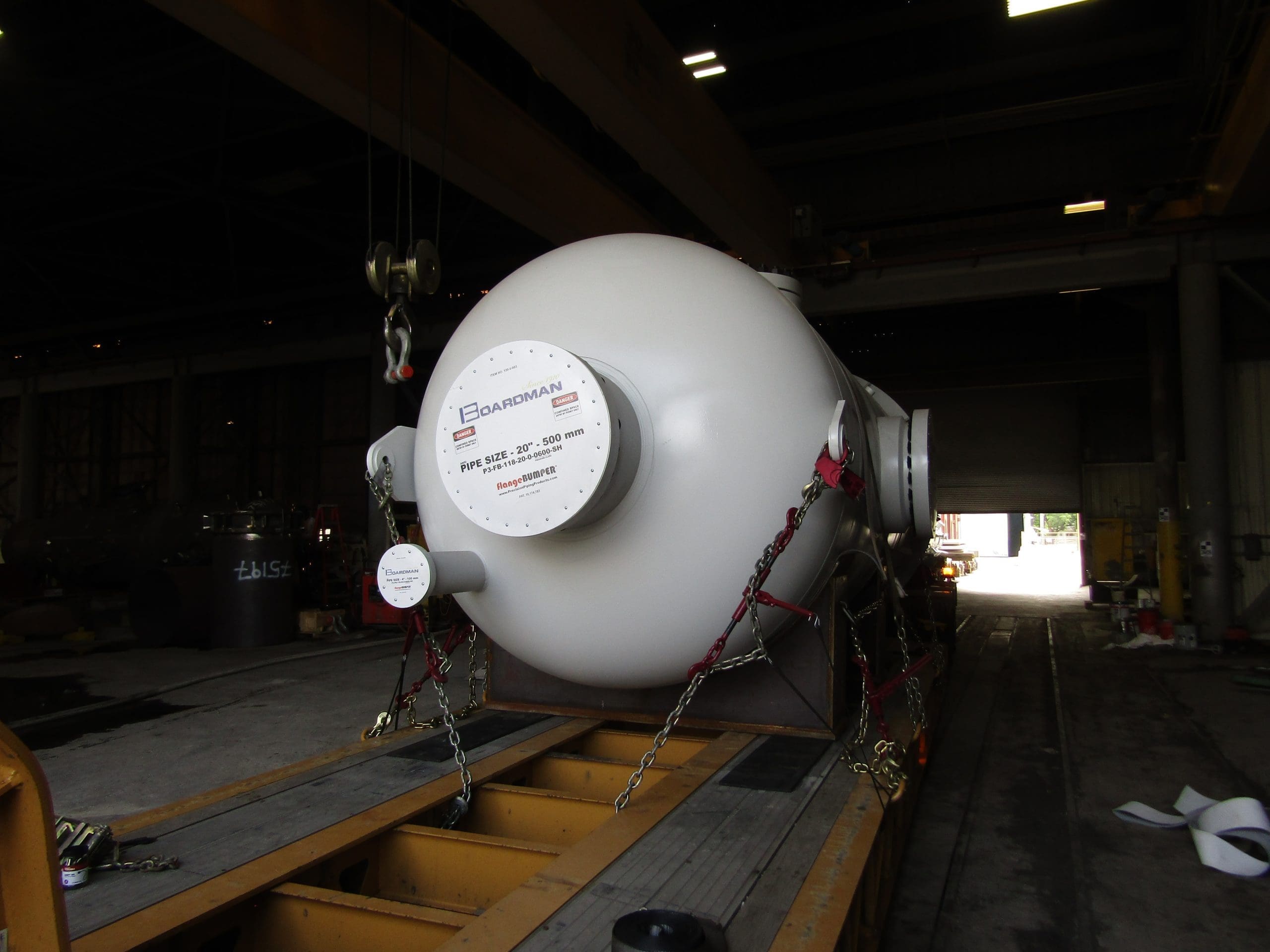

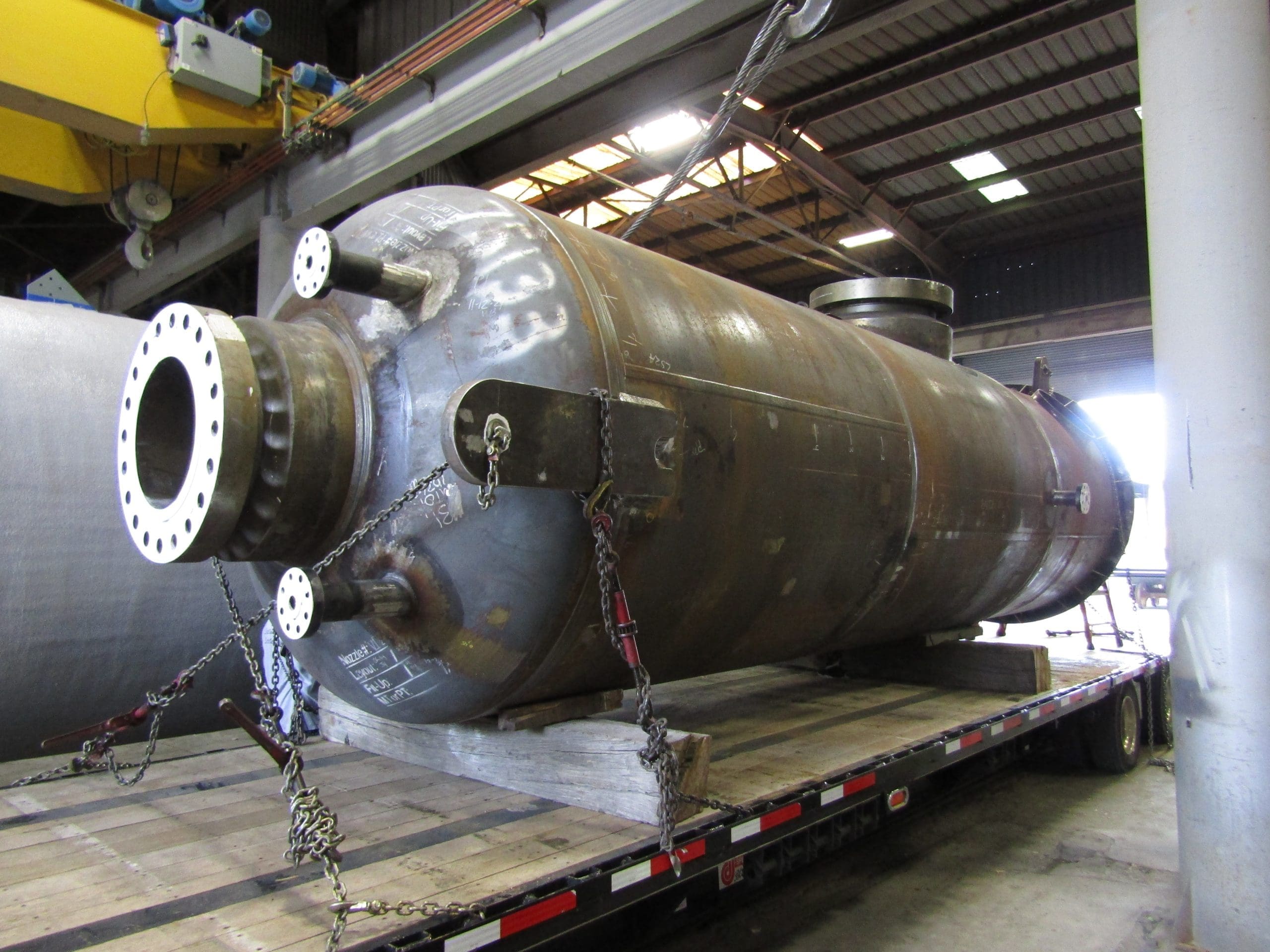

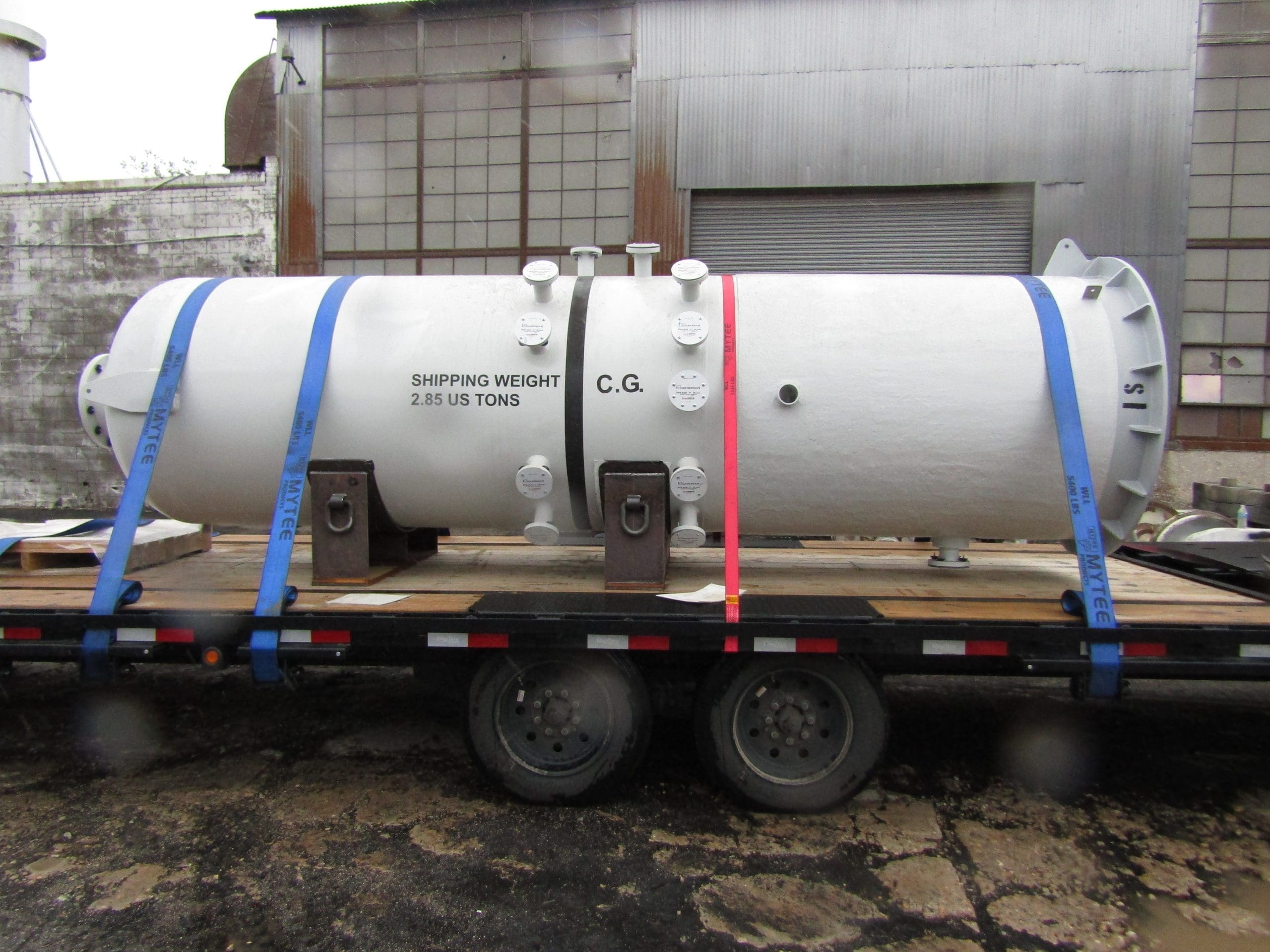

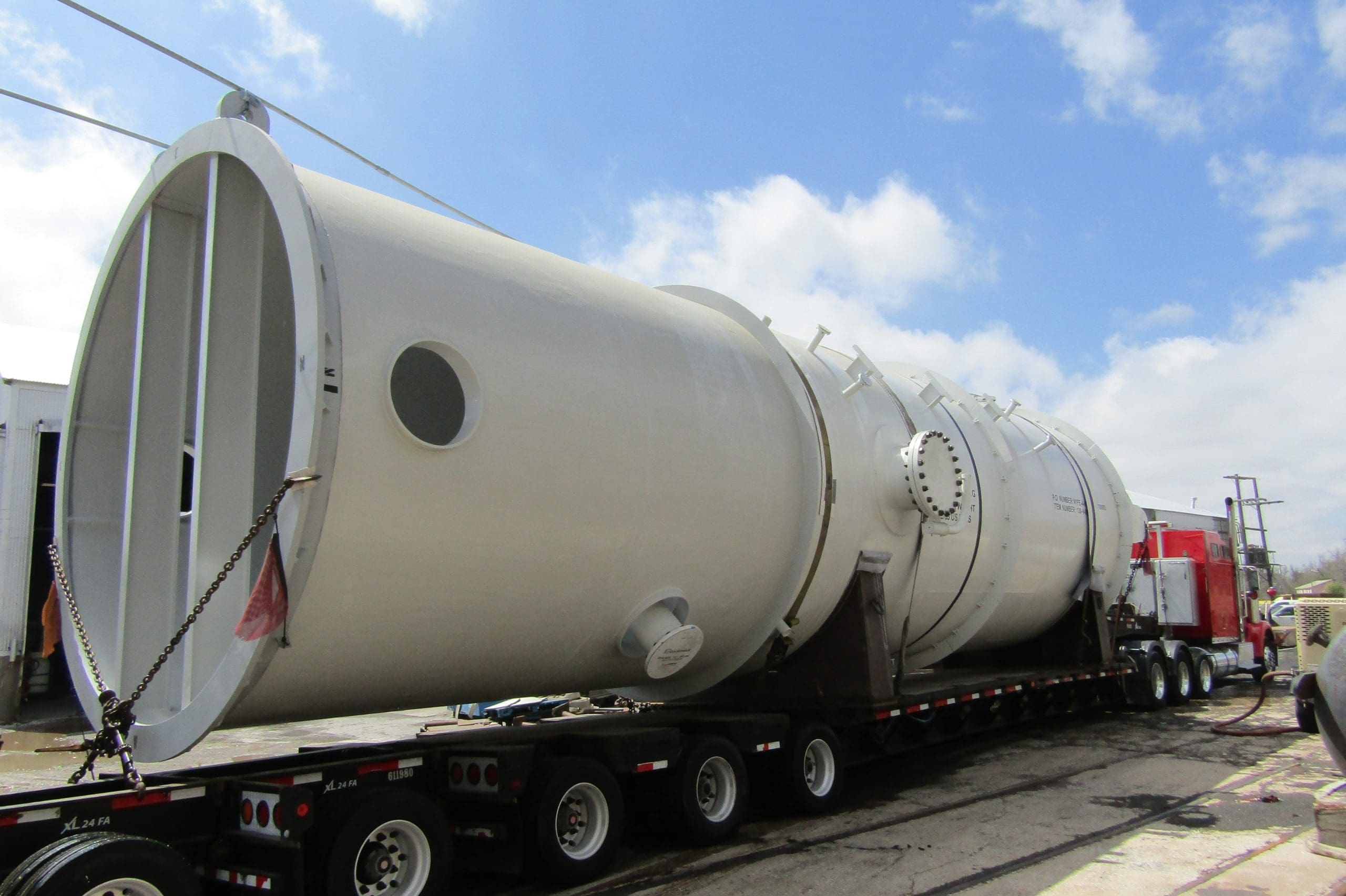

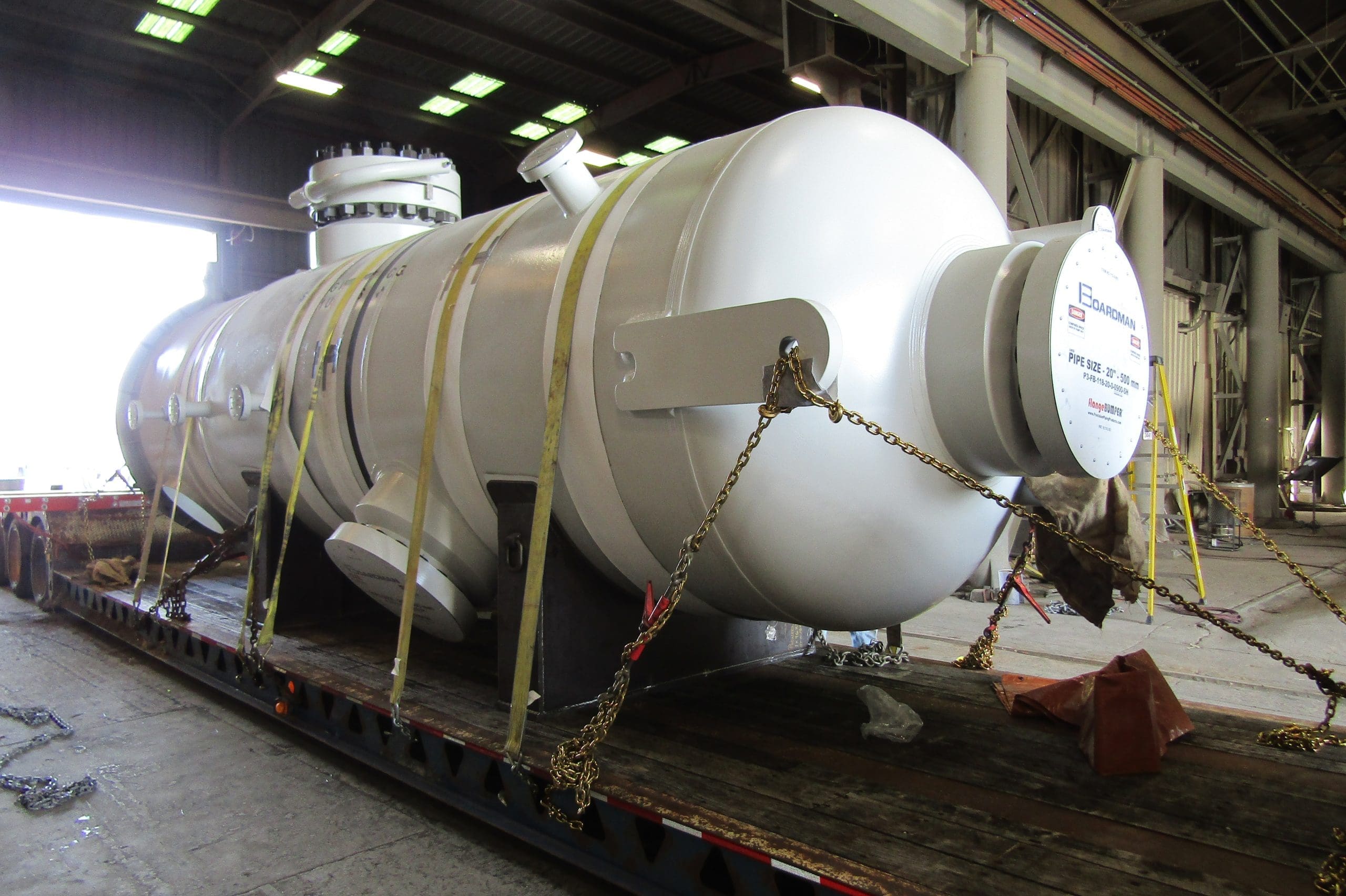

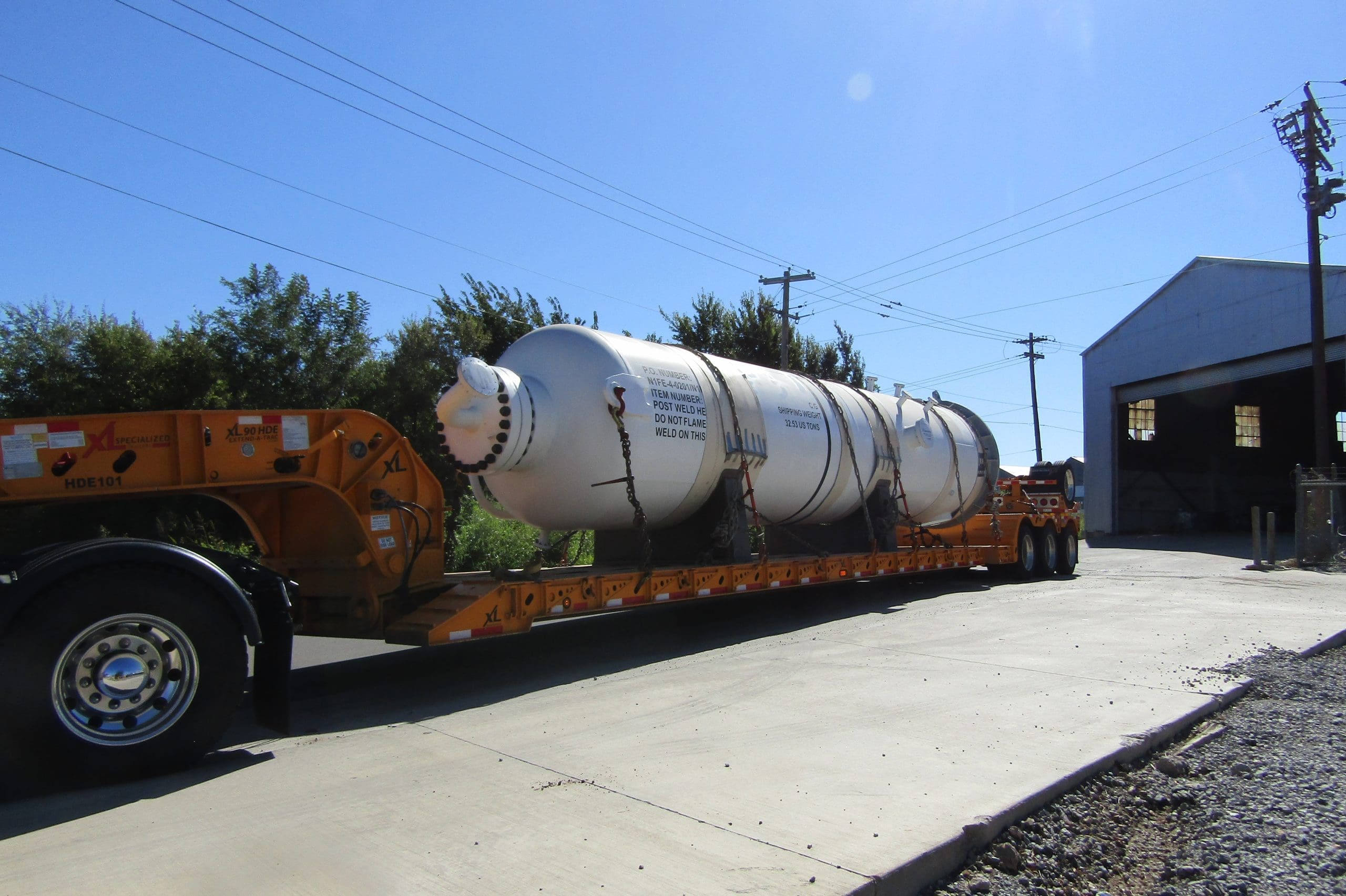

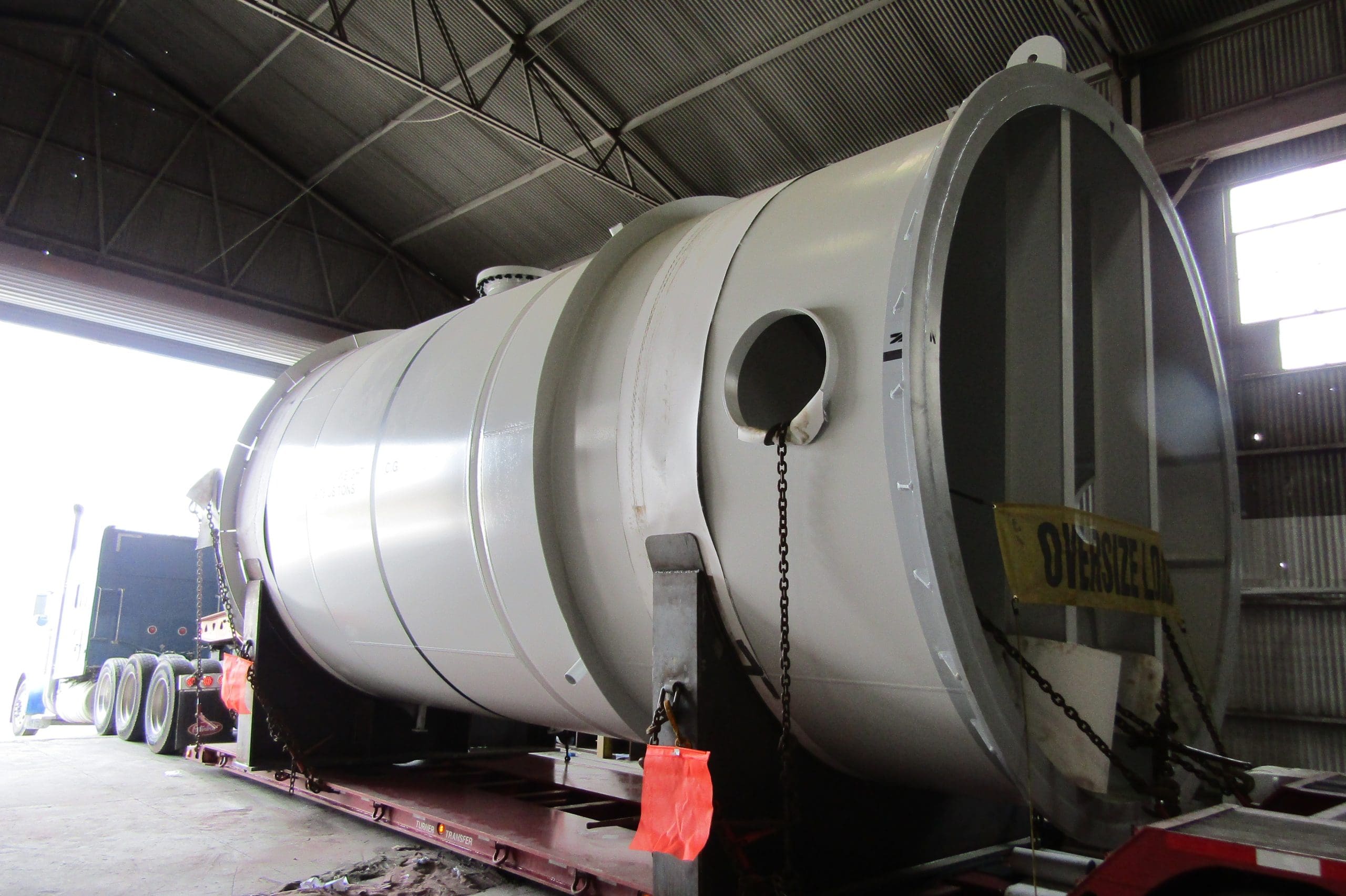

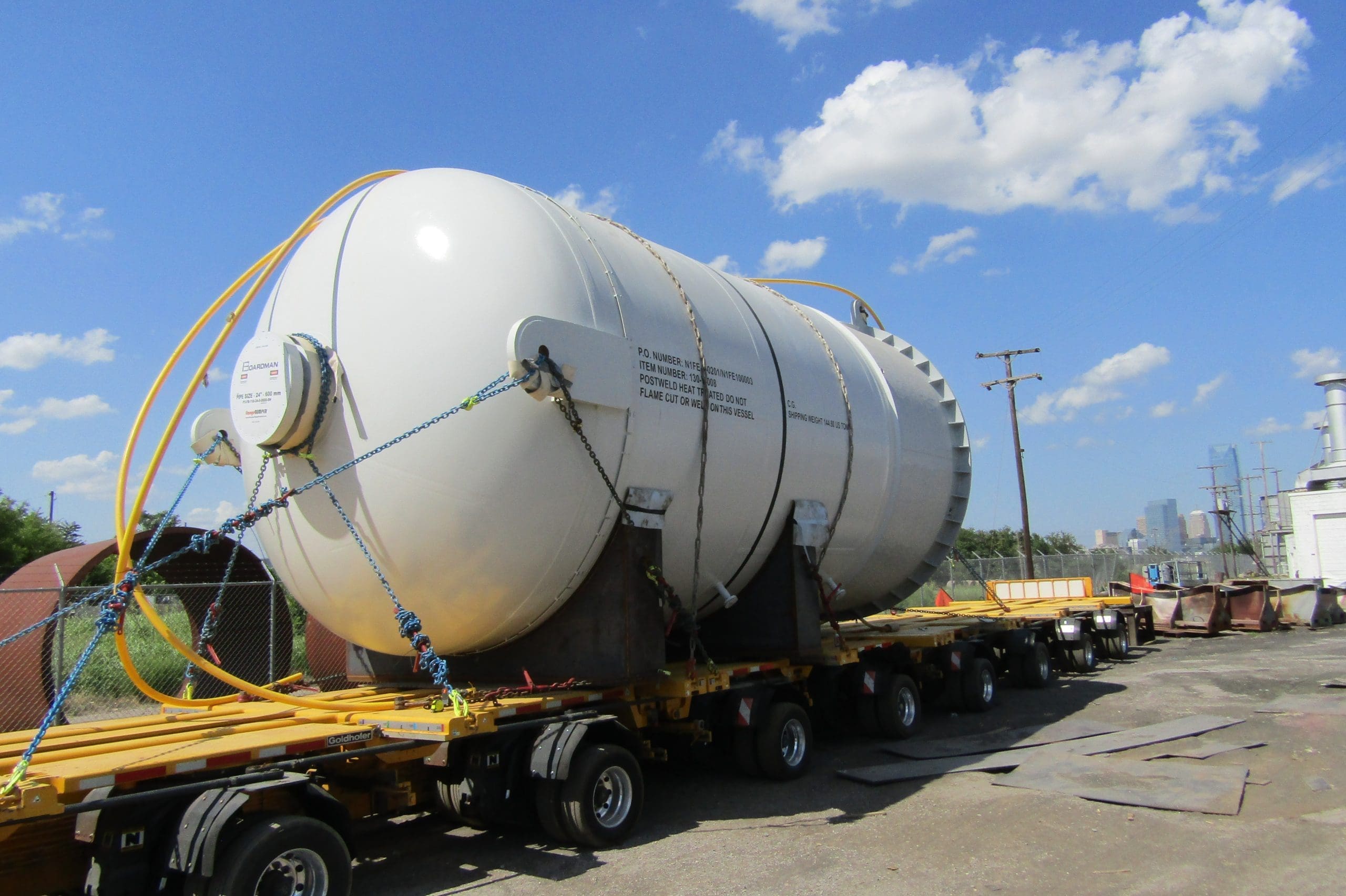

Fabrication utilized SAW (tandem arc), GTAW, FCAW Welding processes. We also used Semi-automated circle SAW machine on the larger nozzles. The hyper-fill welding process was used structural attachments and supports. A semi-automated oxy-fuel machine was used to burn and bevel the nozzle holes with a single cut. Induction heating equipment was used for pre-heat and post heating the heavy wall carbon steel material. custom bevel geometry/narrow groove
Equipment on this project included certified weight reports, Lloyd’s Register requirements, and an environmental action ocean transportation analysis. We designed custom distributor piping and baffles for removeable construction and to withstand PWHT and hydro testing. There was a 72” diameter nozzle, custom gaskets and bolting, 10.5” thick HB forgings, appendix 2.2 custom flanges, intricate internals that include an inlet vane pack, vapor sparger, large demister, inlet baffle, level instrument baffle, dip pipes, removable stack and internal weir plates. Fireproofing and Xylan blue coated bolting were included on some of the equipment. Inspection included RT, UT, WFMT, and a NACE Level 3 3-coat paint system was applied.
