NGL Project – Gulf Coast

Vessel Name: Deethanizer Reflux Drum
Size: 150”ID x 46’-6” T/T
Thickness: 2-1/4”
Weight: 227,161lbs
Material: SA516-70N
Industry: Gas Processing (OneOK) – YES

Vessel Name: Raw Feed Amine Contactor
Size: 180”ID x 53’ T/T
Thickness: 3”
Weight: 418,081lbs
Material: SA516-70N
Industry: Gas processing

Vessel Name: Raw Feed Dryer (Qty 2)
Size: 132:ID x 33’ T/T
Thickness: 2-1/4”
Weight: 169,484lbs
Material: SA516-70N
Industry: Gas processing

Fabrication/Project Notes:

Fabrication utilized SAW (tandem arc), GTAW, FCAW welding processes.  Semi-automated circle SAW machine was used on the larger nozzles.  The hyper-fill welding process was used structural attachments and supports. A semi-automated oxy-fuel machine was used to burn and bevel the nozzle holes with a single cut.

The equipment included multiple beds with beam supports, feed pipes, internals, ladders & platforms, fireproofing.  We moved spliced shells to fall outside of the shipping saddles. Inspection included RT, UT, MT, WFMT, Cobalt X-Ray.

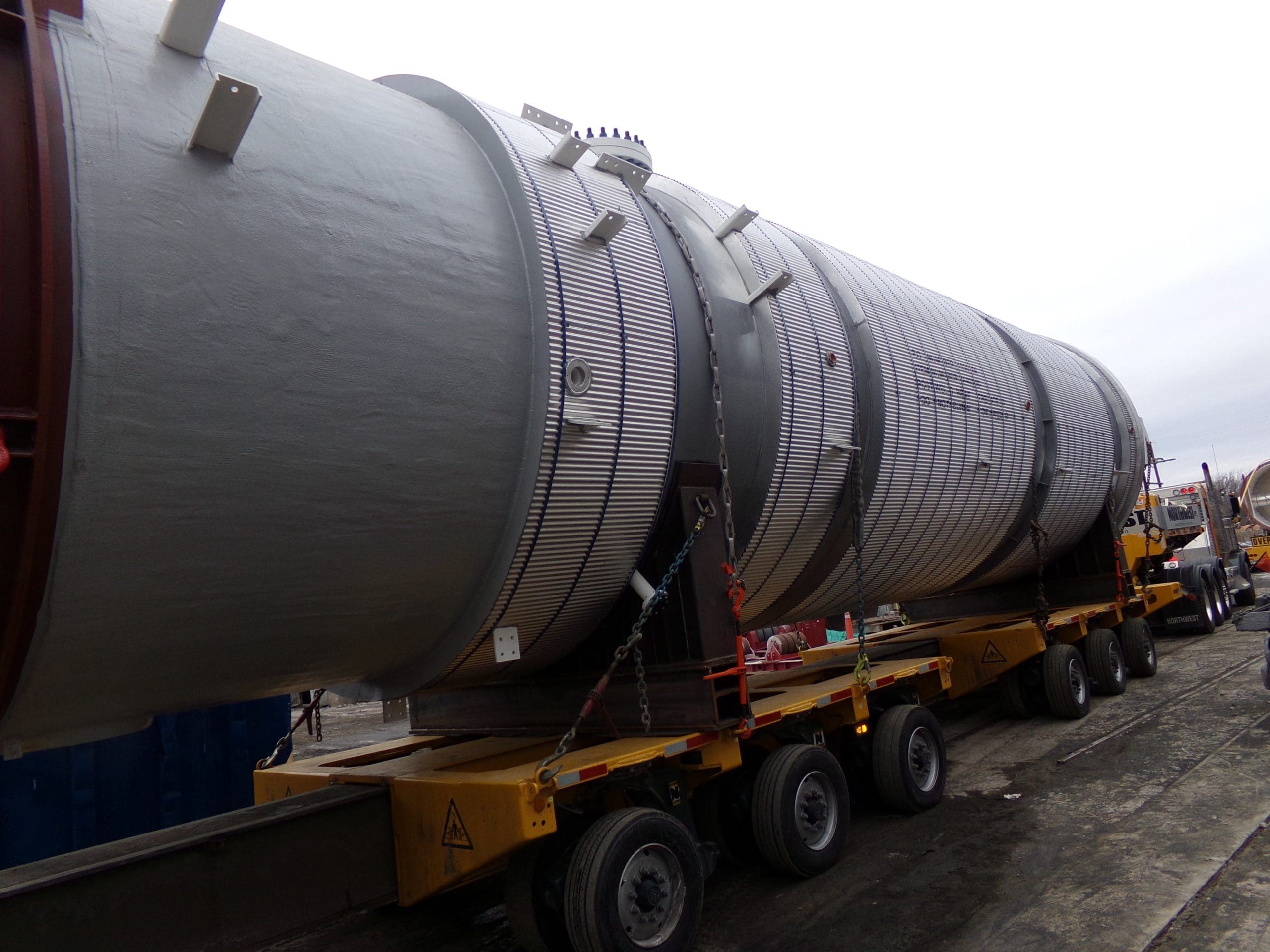

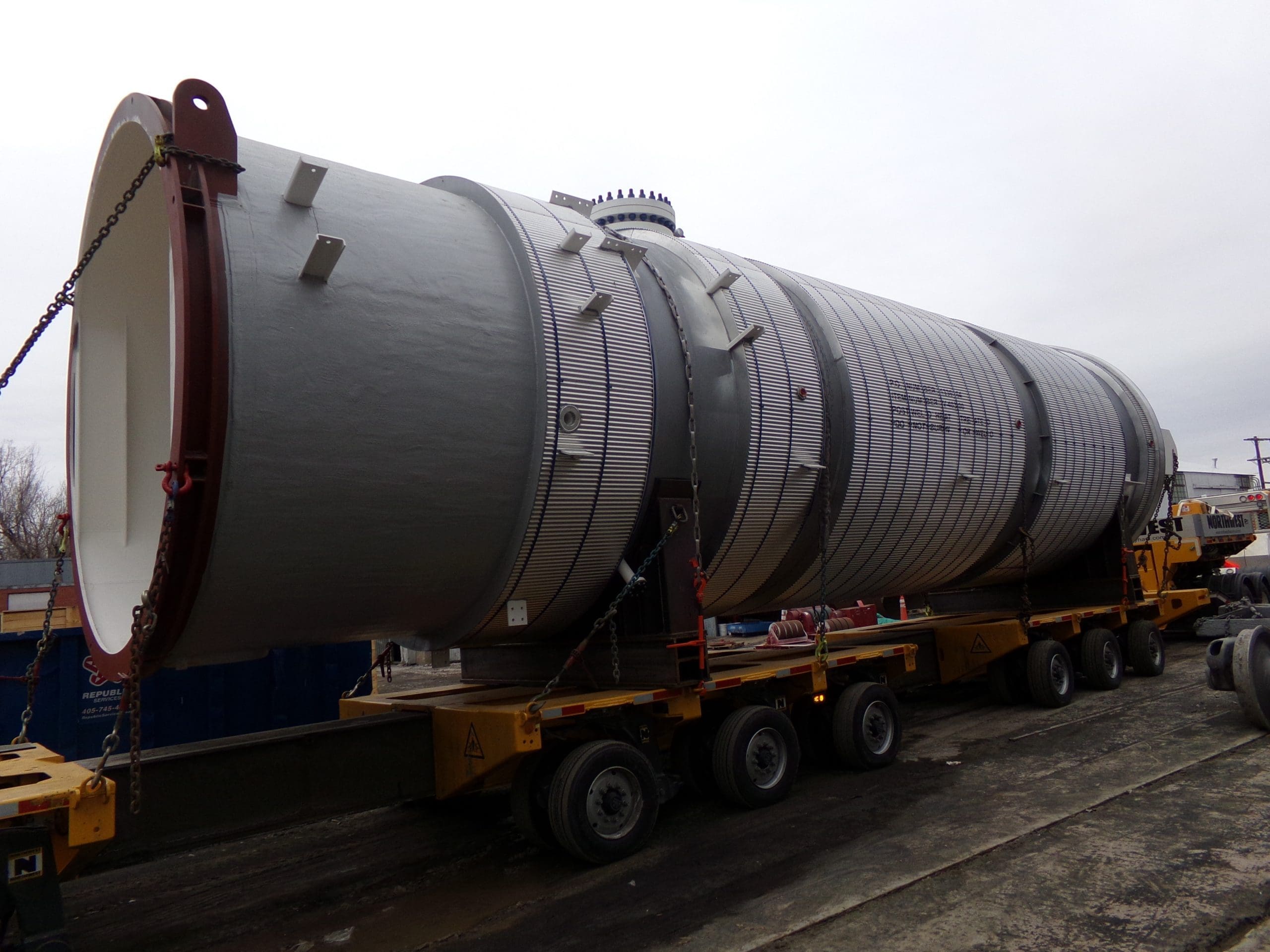

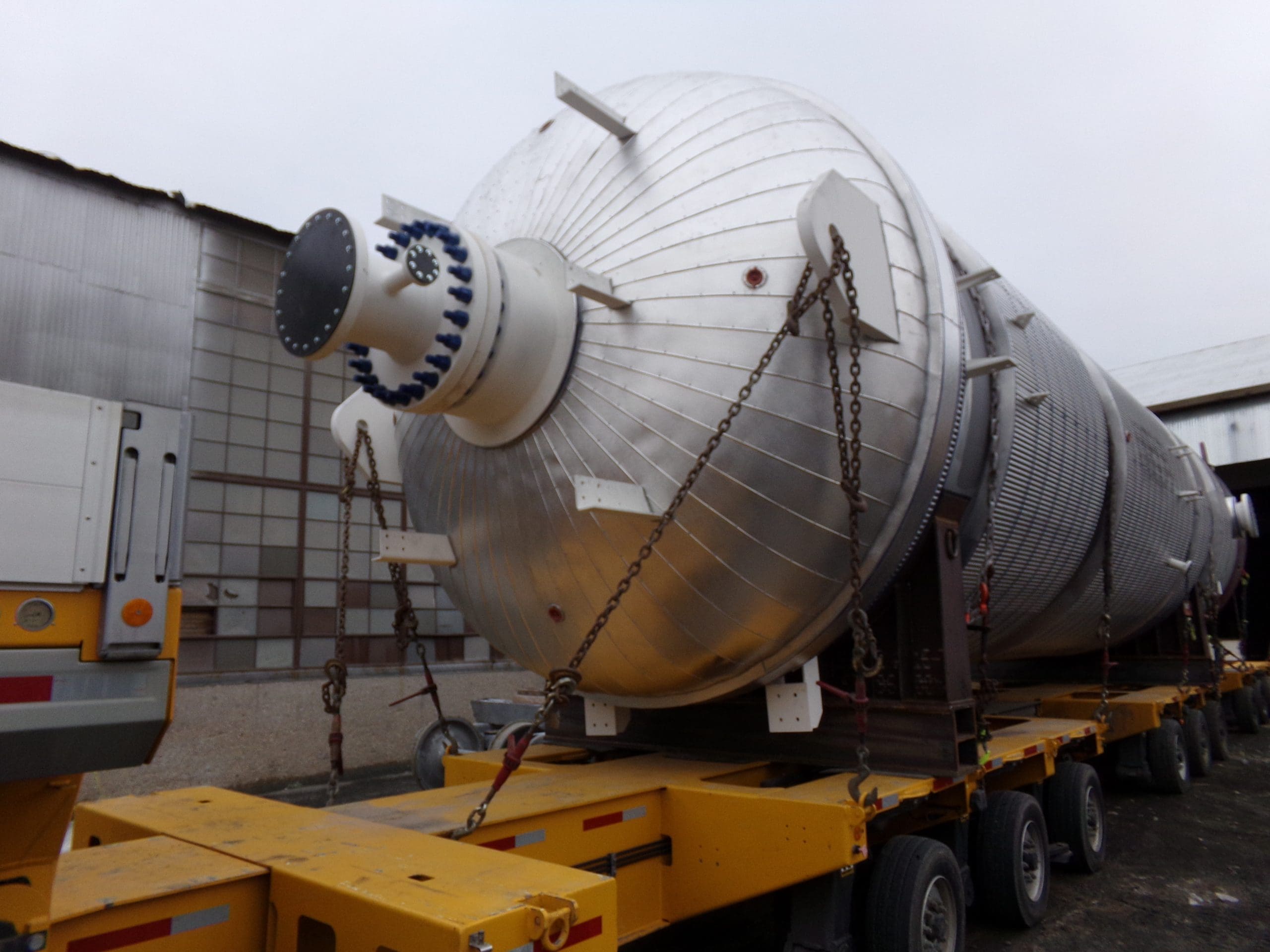

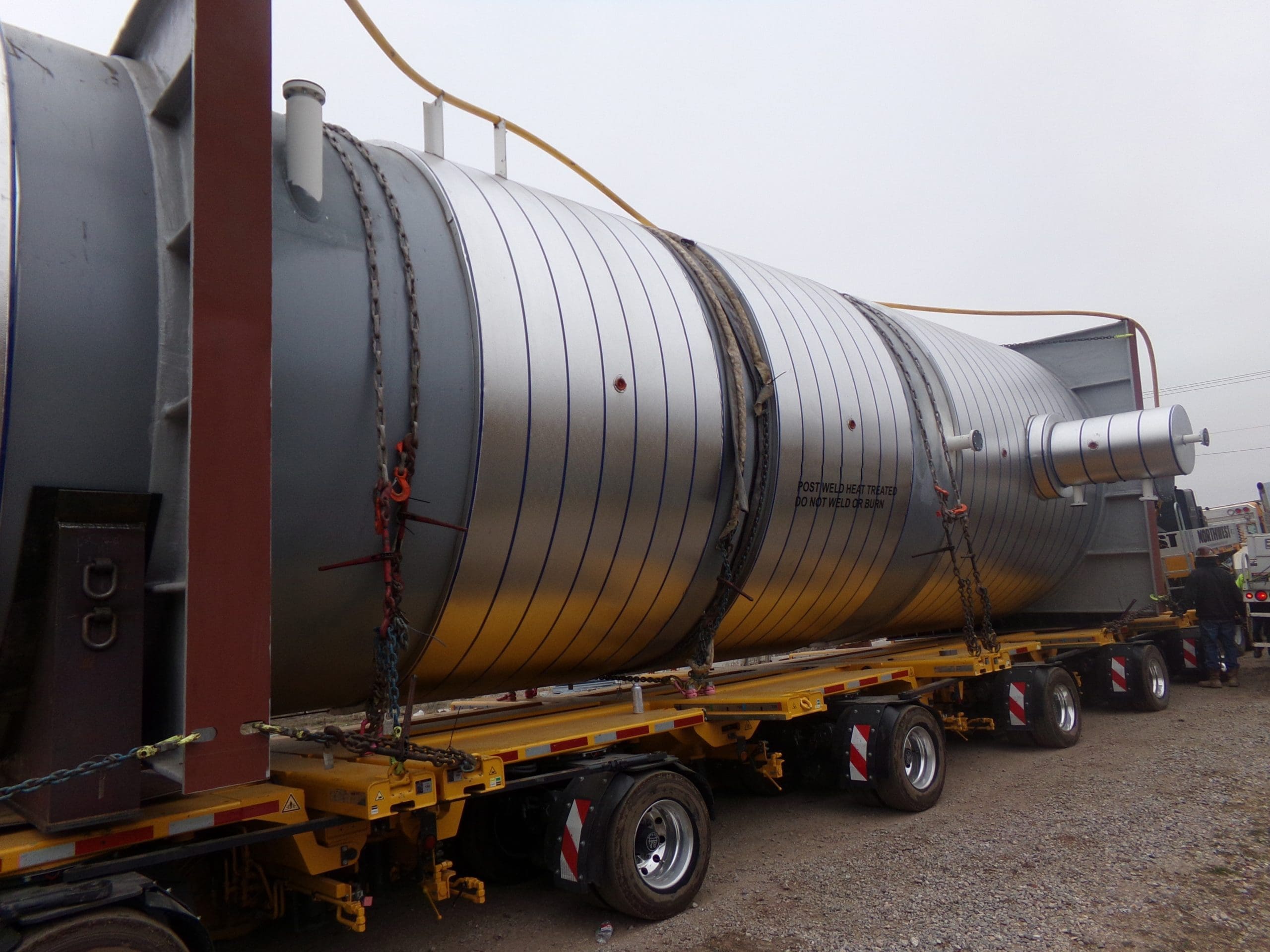

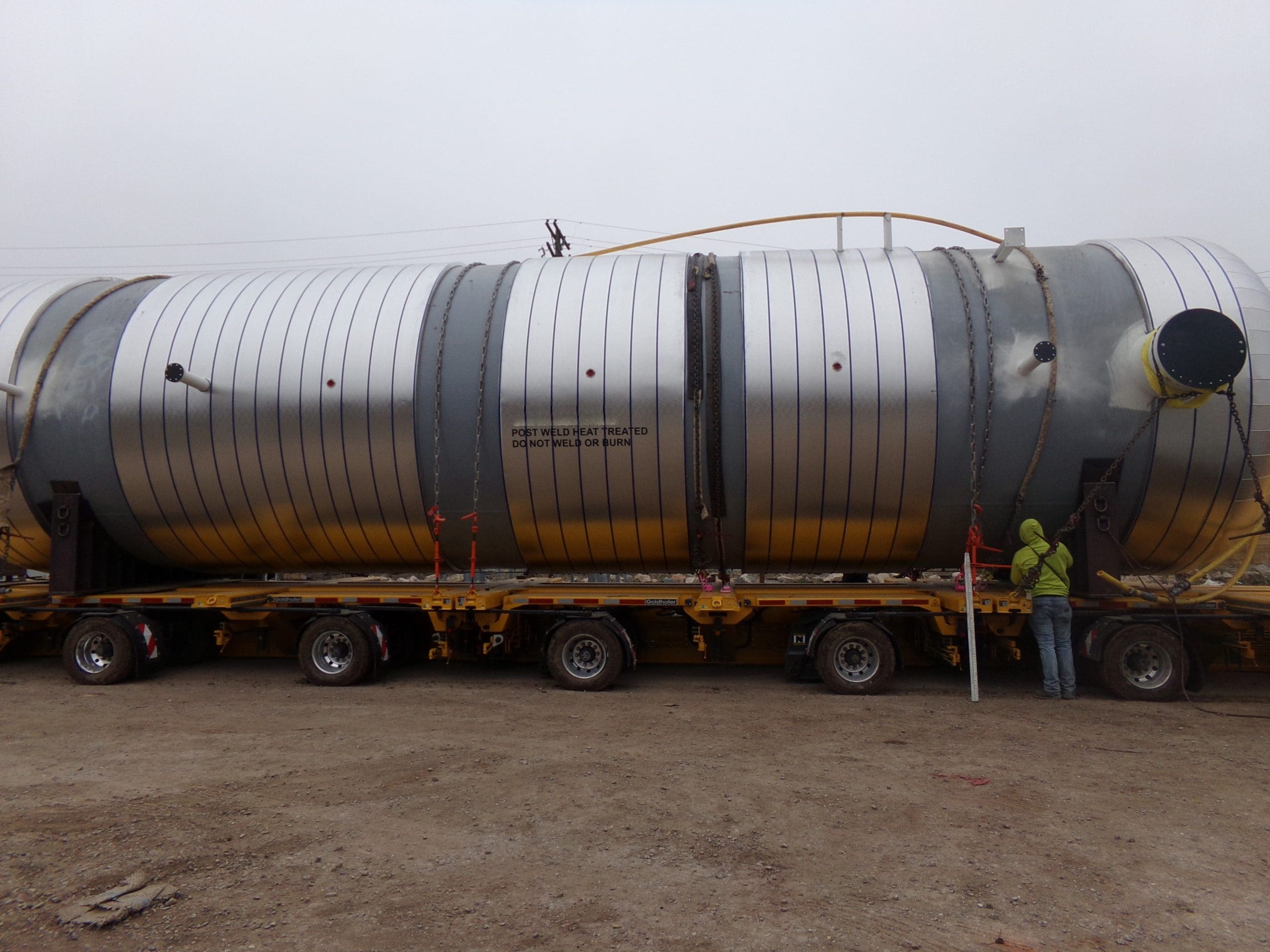

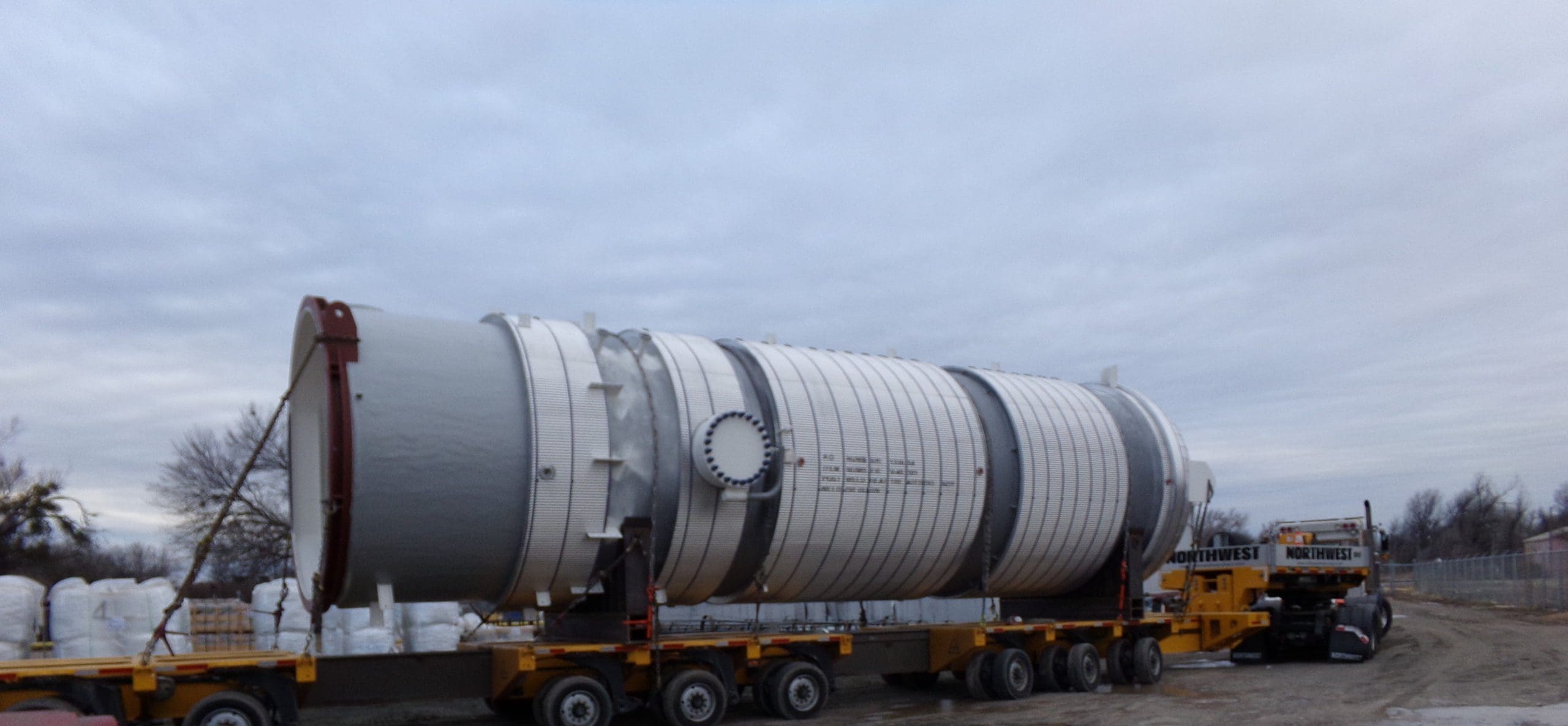

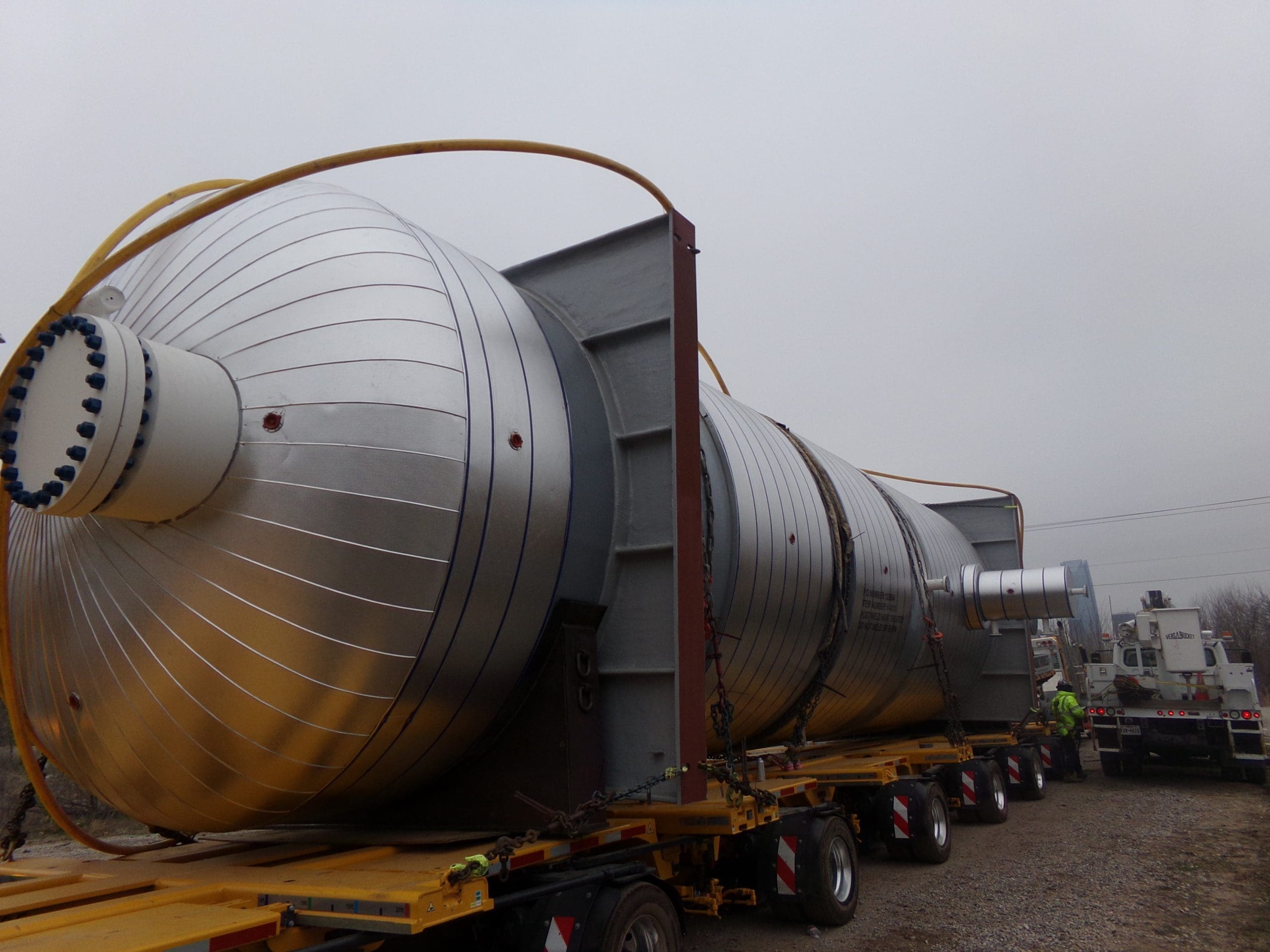

Click Photos to Enlarge
