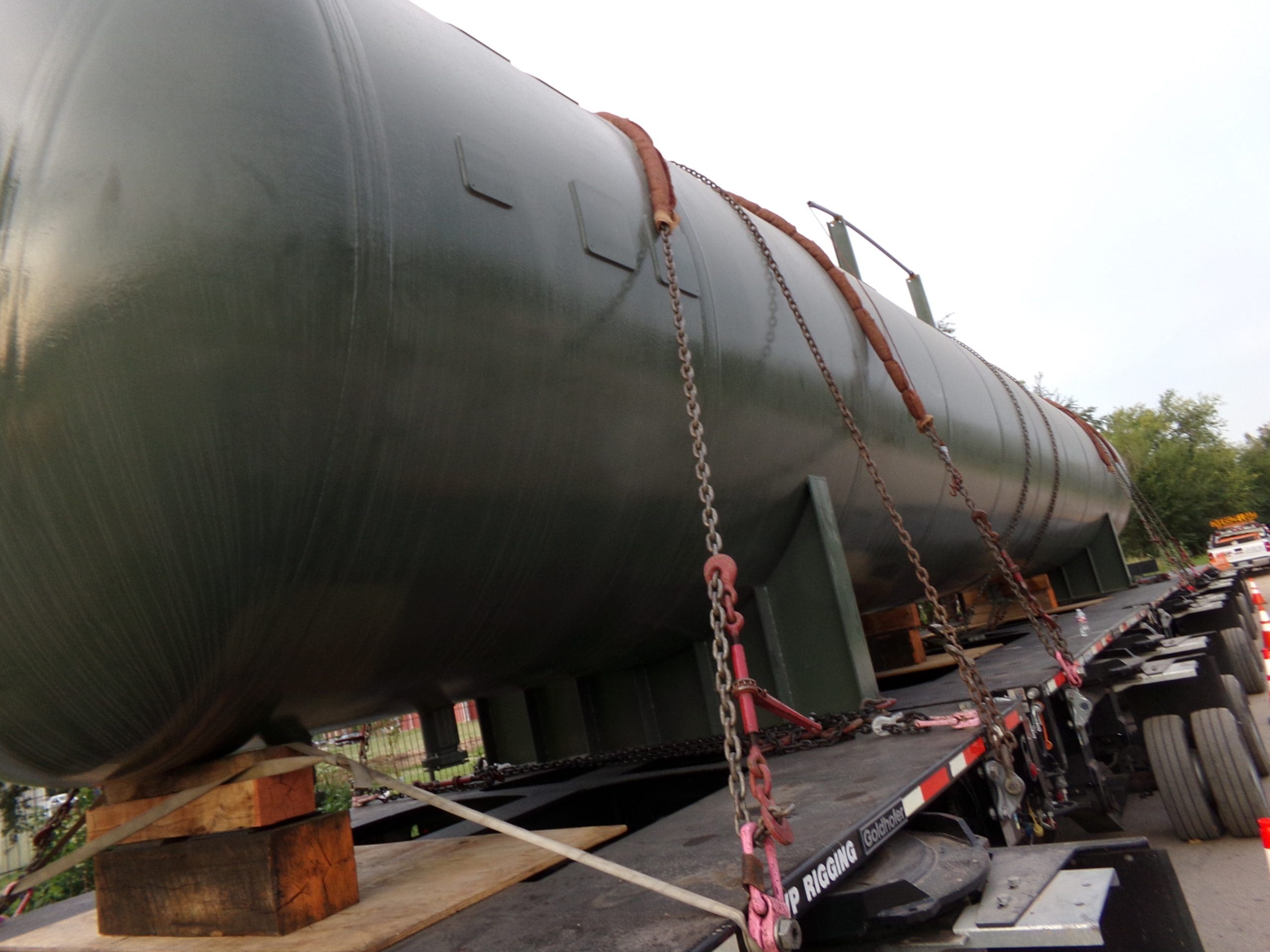

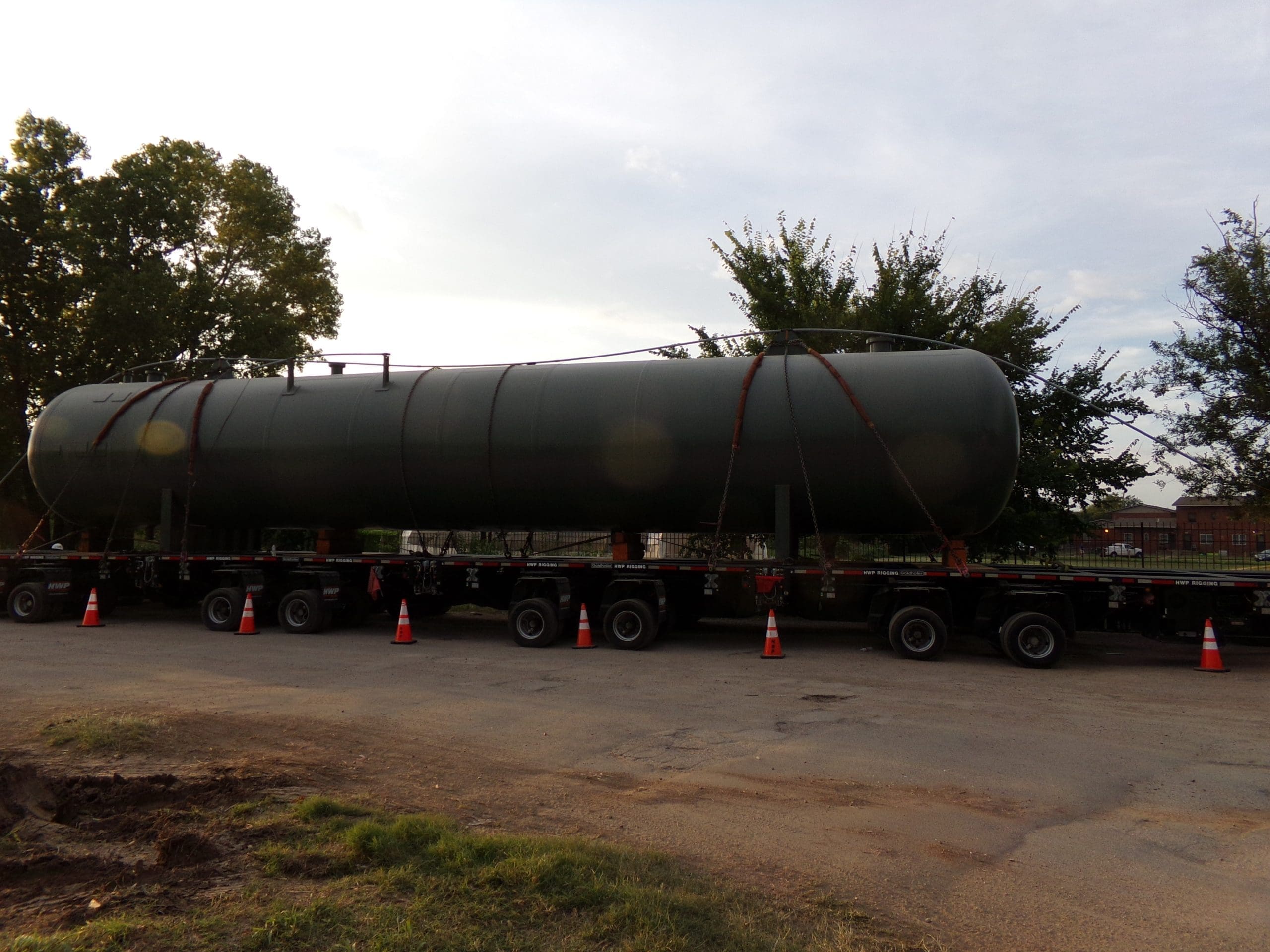

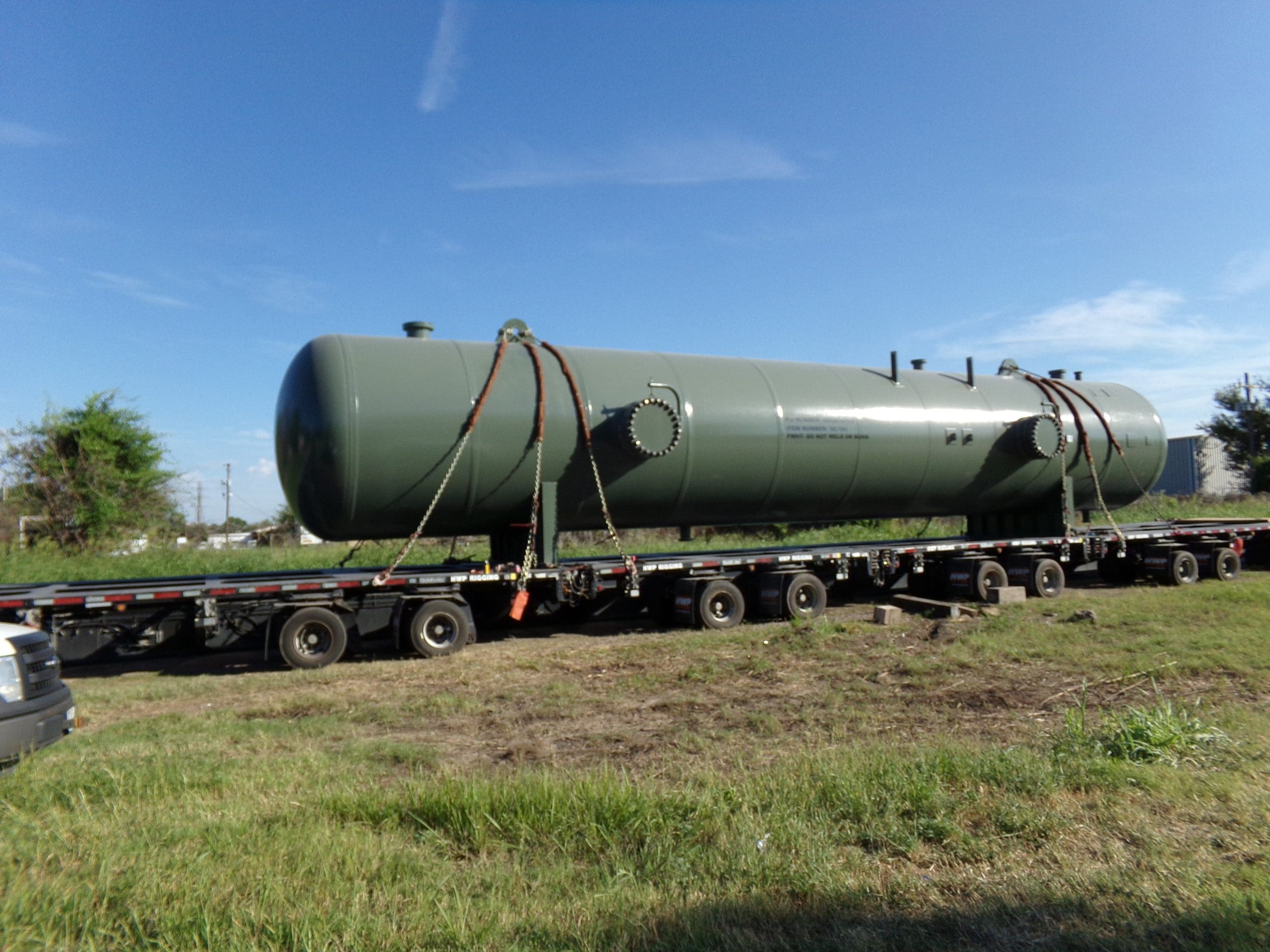

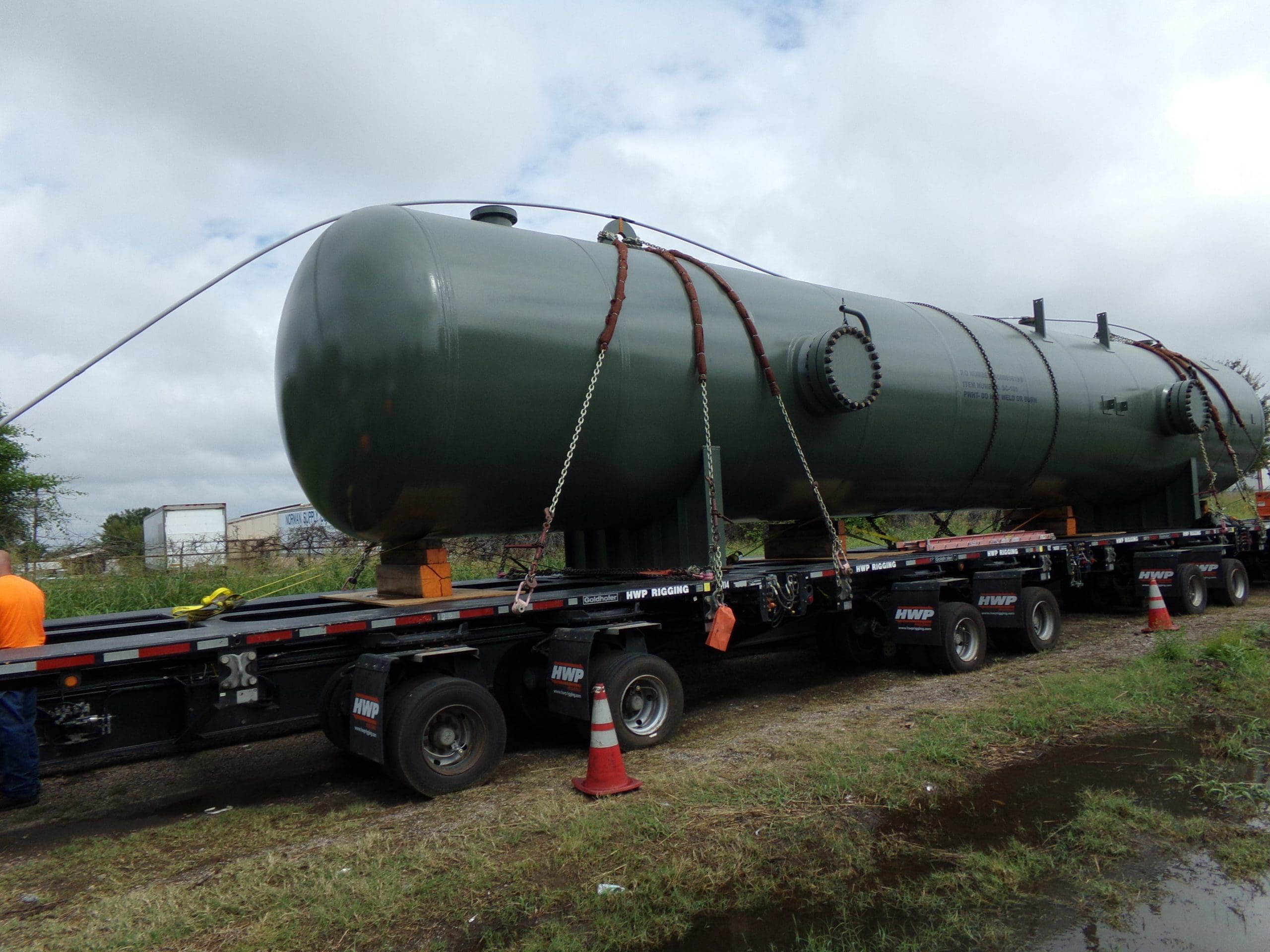

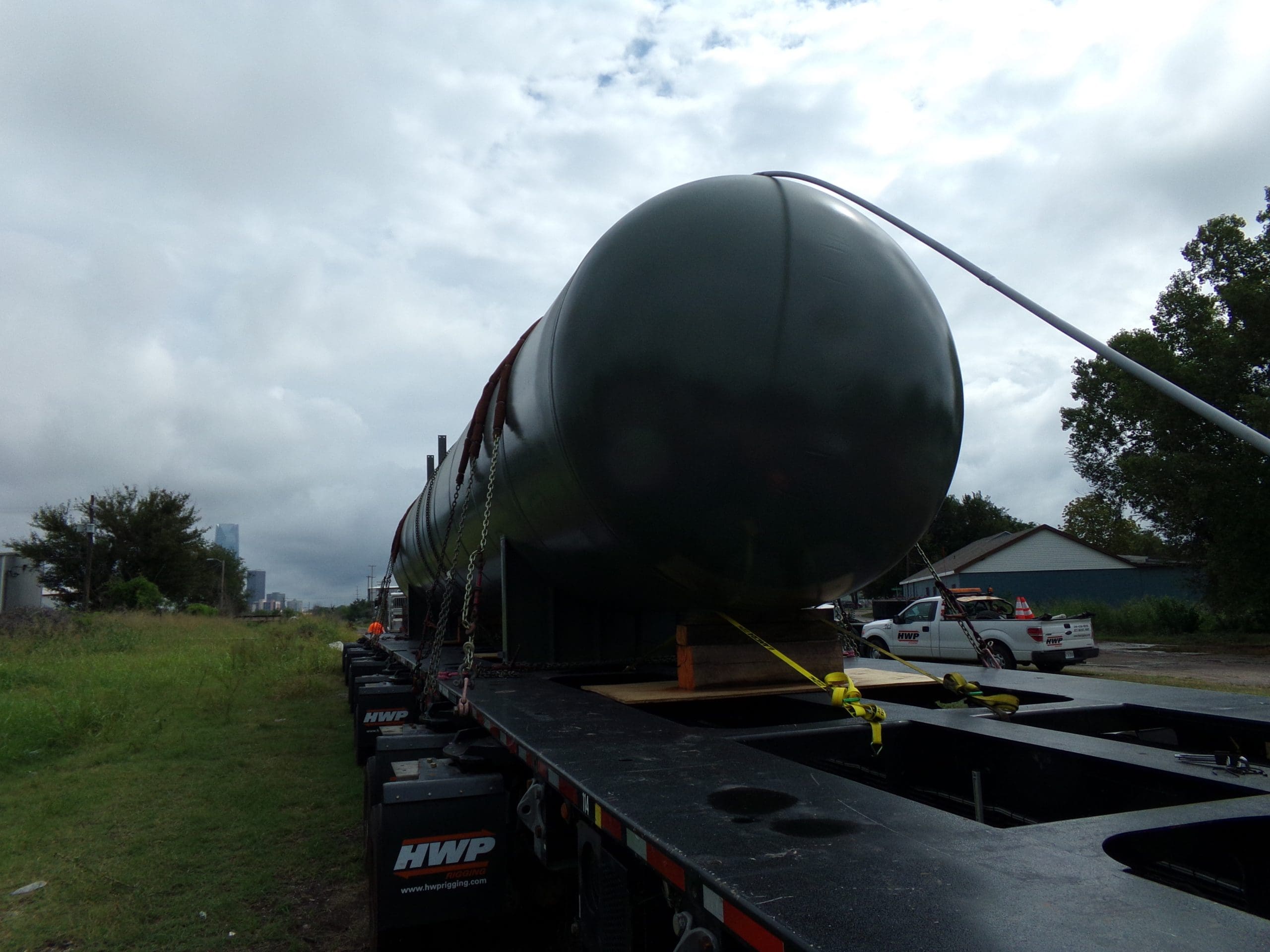

Vessel Name: Inlet Slug Catcher
Size: 120”ID x 60’T/T
Thickness: 4”
Weight: 341,625
Material: SA216-70N
Industry: Gas Processing
Welding processes used included SAW (tandem arc), GTAW, FCAW. Semi-automated circle SAW machine was used on the larger nozzles. The hyper-fill welding process was used structural attachments and supports. A semi-automated oxy-fuel machine was used to burn and bevel the nozzle holes with a single cut. This equipment was engineered and constructed following ASME Section VIII Division II requirements.
Click Photos to Enlarge
