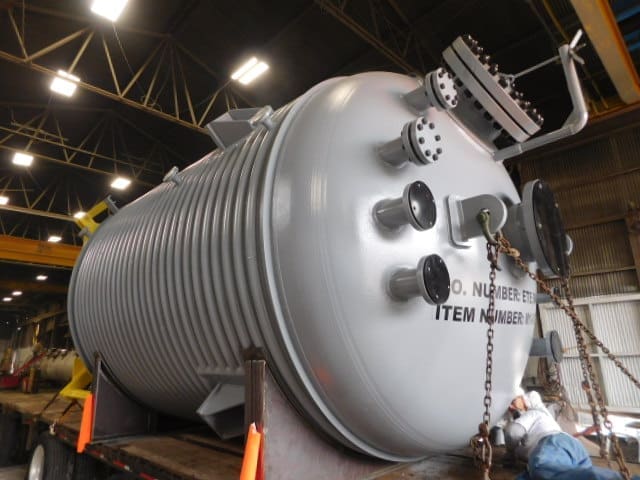

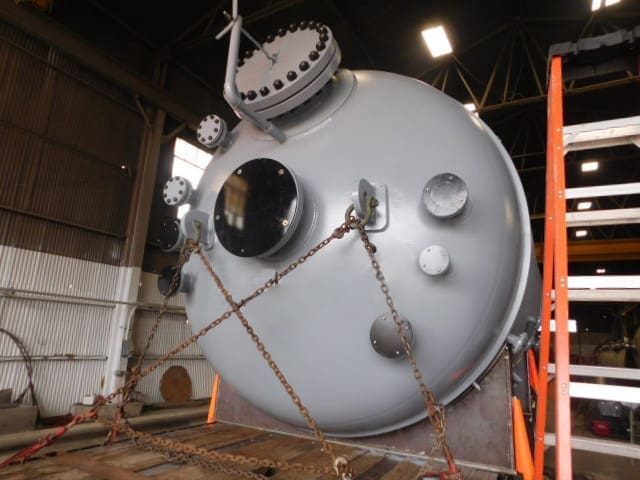

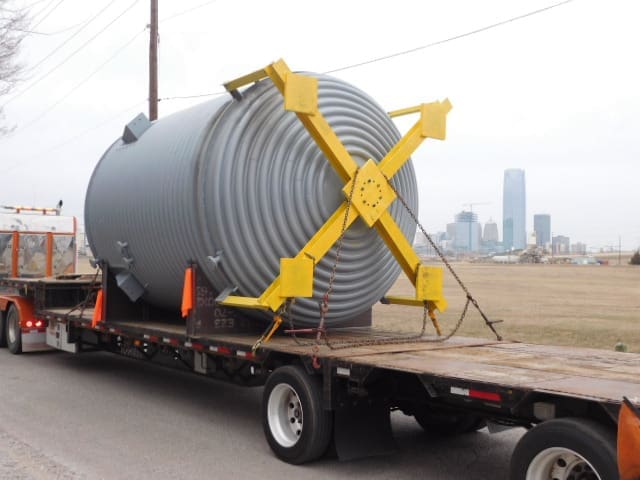

Vessel Name: Silicate Reactor
Size: 114”ID x 12’-3” T/T
Thickness: 1”
Weight: 43,316
Material: SA516-70/SB162-200
Industry: Chemical
Fabrication used SAW (tandem arc), GTAW, FCAW welding processes. Semi-automated circle SAW machine was used on the larger nozzles. GTAW was used for all root weld from the half pipe coil to shell. PAUT was performed on the welds from the half pipe coil to shell

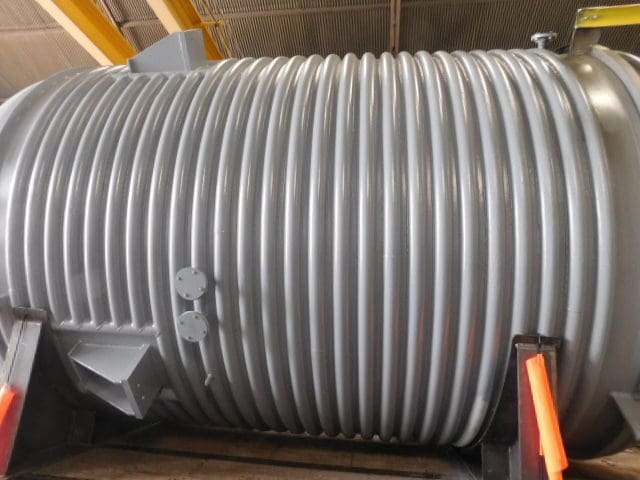

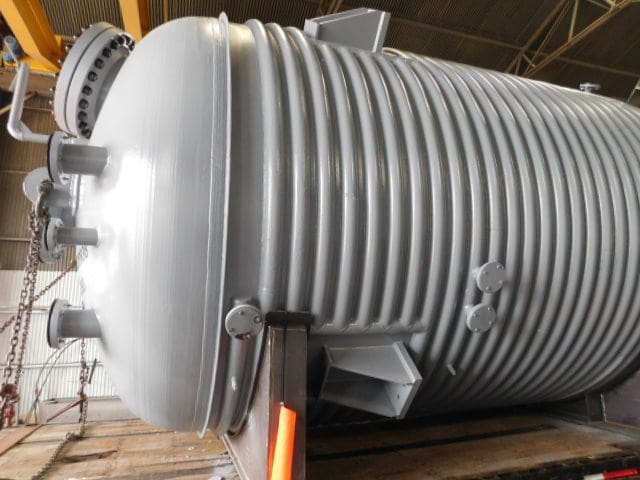

This equipment included half pipe coils, internal baffles and Boardman designed custom push pads to facilitate the site installation
